Versa Box

Light Weight
Easy Installation

Indoor
LED Magical Box System
Create your own Magic!

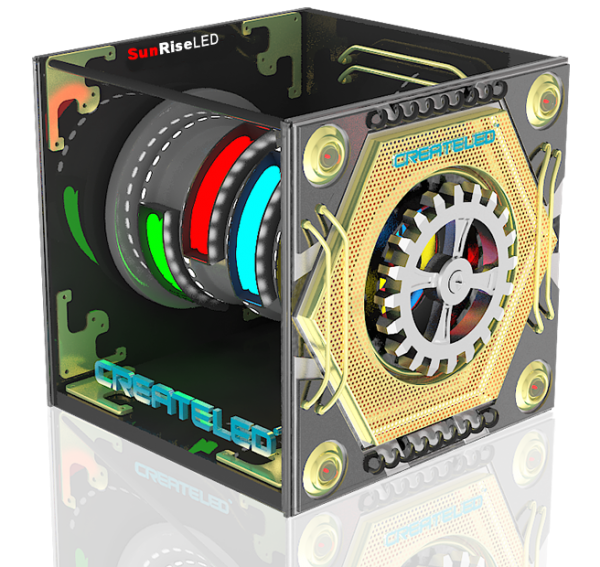

VersaBox Overview

SunRise LED’s VersaBox Display is the industry pioneer for 3 dimensional indoor LED display systems. This unique “LEGO” like display can be assembled into any 3-dimensional cubic shape, providing endless creative possibilities. The multiple viewing angles and high quality color fidelity make the VersaBox a work of art. VersaBox is so unique, there is no way your message will be overlooked. It is perfect for corporate lobby displays, retail centers, TV studios, car shows, and entertainment industries. These exciting displays are available in a variety of pixel pitch options to suit any application. VersaBox may be used for fixed installation or rental applications.

Shopping Mall

Project: Prototype

Product model：VB

Year：2018

Model	VB2	VB3	VB5
Physical Pitch	2.9 mm	3.9 mm	5.2 mm
Pixel Configuration	SMD	SMD	SMD
Pixel Density	112,896 pixels/m² 28,224 pixels/panel	65,536 pixels/m² 16,384 pixels/panel	36,864 pixels/m² 9,216 pixels/panel
Module Dimensions (mm)	250 X 250	250 X 250	250 X 250
Panel Dimensions (mm)	503 X 503 X 516	503 X 503 X 516	503 X 503 X 516
No. of Modules Per Panel(W x H)	2 X 2	2 X 2	2 X 2
Physical Resolution of Module(W x H)	84 X 84	64 X 64	48 X 48
Physical Resolution of Panel(W x H)	168 X 168	128 X 128	96 X 96
Weight Per Panel	15.70 Ib/panel	15.70 Ib/panel	15.70 Ib/panel
Weight Per m²	28.5 kg/m²	28.5 kg/m²	28.5 kg/m²
Processing	16 Bit	16 Bit	16 Bit
Colours	281 Trillion	281 Trillion	281 Trillion
Contrast Ratio	4000:1	4000:1	4000:1
Average Power Consumption	36 – 60 w/panel	36 – 60 w/panel	36 – 60 w/panel
Max Power Consumption	120 w/panel	120 w/panel	120 w/panel
OperatingTemperature/Humidity	-10-40℃/10%-60%	-10-40℃/10%-60%	-10 – 40℃/10% – 60%
Storage Temperature/Humidity	-30-60℃/10%-60%	-30-60℃/10%-60%	-30 – 60℃/10% – 60%
Brightness	1200 nits	1200 nits	1200 nits
Refresh Rate	1920 – 3840 Hz	1920 – 3840 Hz	1920 – 3840 Hz
Horizontal Viewing Angle	160°	160°	160°
Vertical Viewing Angle	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs
Max Stacking	12	12	12 panels
Servicing	Front and Back	Front and Back	Front and Back
IP Rating	IP 43	IP 43	IP 43
Certification	CE, RoHS,EMC Class A	CE, RoHS,EMC Class A	CE, RoHS,EMC Class A

2 Year Free Parts/Factory Labor Warranty

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered. If you experience a hardware failure with a covered product during the plan’s term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.

Dual backup system

Each of these systems have dual backup: Power supply, signal cable and control system.

High Color Fidelity

All LED lamps used in our displays are carefully screened to ensure compliance with our proprietary RGB wavelength’s and stringent quality standard.

This unique selection method during the manufacturing process, ensures color uniformity and consistency by default, setting the standard in high performance LED displays.

Using 16-Bit signal processing, the SunRise LED display system is able to produce 65,536 shades of red, 65,536 shades of blue and 65,536 shades of green. (2¹⁶= 65,536), resulting in a display that has the ability to reproduce an astonishing 281 trillion colors. (65,536 x 65,536 x 65,536 = 281,474,976,710,656).

Smooth, crisp, vivid images displaying real color, is now a reality.

high-colour-fidelity-airmag-createled-1024x450

Front Serviceable

Using the patented POP in POP out magnetic tool any module in the display screen matrix can be removed from the front in seconds with very little effort.

Mechanically Precise

Panels are manufactured by precision CNC process, ensuring a tolerance of less than 0.1mm, creating a seamless panel to panel and module to module connection.
