Indoor Turnkey Multi-Functional UHD LED Poster (I-Mira II)
A Seamless combination of 2 sets
A Seamless combination of 3 sets
A Seamless combination of 5 sets
Features:
⇒ Lightweight and easy mobility
⇒ Seamless Combination of several units
Easy front maintenance
⇒ Efficient local and remote media management and smart control via Wi-Fi, Ethernet, mobile APP
⇒ The I-Mira II series poster can be widely used in retail stores, hotels, restaurants, shopping malls, banks, companies, hospitals, schools, airports, subway stations and etc.
Attractive Super Slim Display
SunRise LED continues the pursuit to develop new, innovative designs
Every detail has been carefully considered.
From ease and convenience of use to high performance the Versa Poster has been designed to exceed expectations for innovative LED displays.
Eye catching from every angle and distance
The full screen size is approximately 1900 mm x 600 mm and is viewable from a distance of 20 meters.
Multi-screen Cascade
Cascade images across multiple Versa Poster Displays for a
magnificent visual experience
High 2880 Hz refresh rate and 1200 nits brightness
which is 3 times brighter than an LCD display.
160° wide viewing angle with more realistic color reproduction.
Consider the possibilities for a
Marketing Miracle
Display new sales, marketing materials, public announcements in a flash!
Imagine the convenience for convention centers, shopping malls, schools, meeting rooms, public service announcements, command & control centers, airports, gas stations, supermarkets, clubs, restaurants…
and much, much more.
Creative Installations
Imagine the possibilities………….
Specifications
Versa Poster Retail Specifications
| IPoster-1.9 | IPoster-2.5 | ||
|---|---|---|---|
| Module Parameters | Pitch(mm) | 1.9400 | 2.5000 |
| Pixel Configuration | SMD 3 in 1 | SMD 3 in 1 | |
| LED Type | SMD(1010) | SMD(2020) | |
| Module Dimensions(Inch)(HxW) | 8.27"*11.02" | 8.27"*11.02" | |
| Module Resolution(HxW) | 108*144 | 84*112 | |
| Cabinet Parameters | Pixel Density(pixel/cabniet) | 279936 | 169344 |
| Cabinet Configuration(HxW) | 9*2 | 9*2 | |
| Cabinet Dimensions(Inch)(HxW) | 74.88*22.52*1.38 | 74.88*22.52*1.38 | |
| Cabinet Material | Aluminium profile | aluminium profile | |
| Cabinet Resolution(HxW) | 972*288 | 756*224 | |
| Cabinet Area(Ft2) | 11.41 | 11.41 | |
| Weight(KG/cabinet) | 70.55 | 70.55 | |
| IP Rating (Front/Rear) | IP40 | IP40 | |
| Opto Parameters | Max White Balance Brightness(Nits) | 1000 | 1200 |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | |
| Pixel Level Brightness Calibration | yes | yes | |
| Pixel Level Color Calibration | yes | yes | |
| Contrast | 4000:1 | 4000:1 | |
| Brightness Control Mode | Manual/Auto/ Programmable | Manual/Auto/ Programmable | |
| System Parameters | Max Power Consumption(W/cabinet) | 750 | 600 |
| Average Power Consumption(W/㎡) | 250 | 210 | |
| Power Supply | AC120/208±10%,47~63Hz | AC120/208±10%,47~63Hz | |
| Typical Lifetime(hours)（50% brightness) | 80000 | 80000 | |
| Working Temperature(oC) | -10 — +40 | -10 — +40 | |
| Working Humidity(%RH) | 10 — 90 | 10 — 90 | |
| Serviceability | Front /Rear | Front /Rear | |
| Certificate | CCC/CE/ ETL/ FCC | CCC/CE/ ETL/ FCC | |
| Image Processing | Frame Rate(Hz) | 50/60 | 50/60 |
| Refresh Rate(Hz) | ≥2880 | ≥2880 | |
| Driving Method | 1/27 dynamic scan | 1/28 dynamic scan |
Versa Poster II (I-Mira II) Retail Specifications
| I-Mira II 1.5-72" | I-Mira II 1.9-72" | I-Mira II 2.5-72" | |
|---|---|---|---|
| Pitch Pitch (mm) | 1.58 | 1.9 | 2.54 |
| LED Type | SMD | ||
| Brightness (cd/m2) | 700 | ||
| Refresh rate (Hz) | 1920/3840 | ||
| Power Consumption (Max/Ave) (W/Display) | 720/240 | 510/180 | 480/168 |
| Overall Display size (WxH) | 610 x 1716 (mm) - 24.02" x 67.56" | ||
| Overall Dimension (WxH) | 616 x 2060 (mm) - 24.25" x 81.10" | ||
| Panel Resolution (px) | 384x216 | 320x180 | 240x135 |
| Weight | 105.82 Ib | ||
| IP Rating | IP 30 | ||
| Input voltage (V) | AC100-240V 50/60Hz | ||
| Maintenance | Front | ||
| operation temperature/Humidity (C/RH) | -10~40/10~85% |
Versa Poster is perfect for hospitals, hotels, shopping malls, banks, libraries, restaurants, airports, train stations, government agencies, trade shows and much more.
1 Year Free Parts/Factory Labor Warranty
For 15+ years, we have been supporting our products around the world. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered. If you experience a hardware failure with a covered product during the plan’s term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.

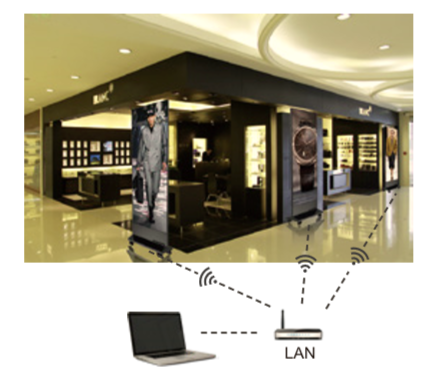

Versatile Operation
Control Versa Posters via mobile phone
Computer/WIFI/USB Connection
Versa Poster can be controlled using IOS or Android App.
Easily change and save content on the phone and upload to the display(s) in 10 seconds.
