Ideal for High Definition Indoor LED Display Solutions

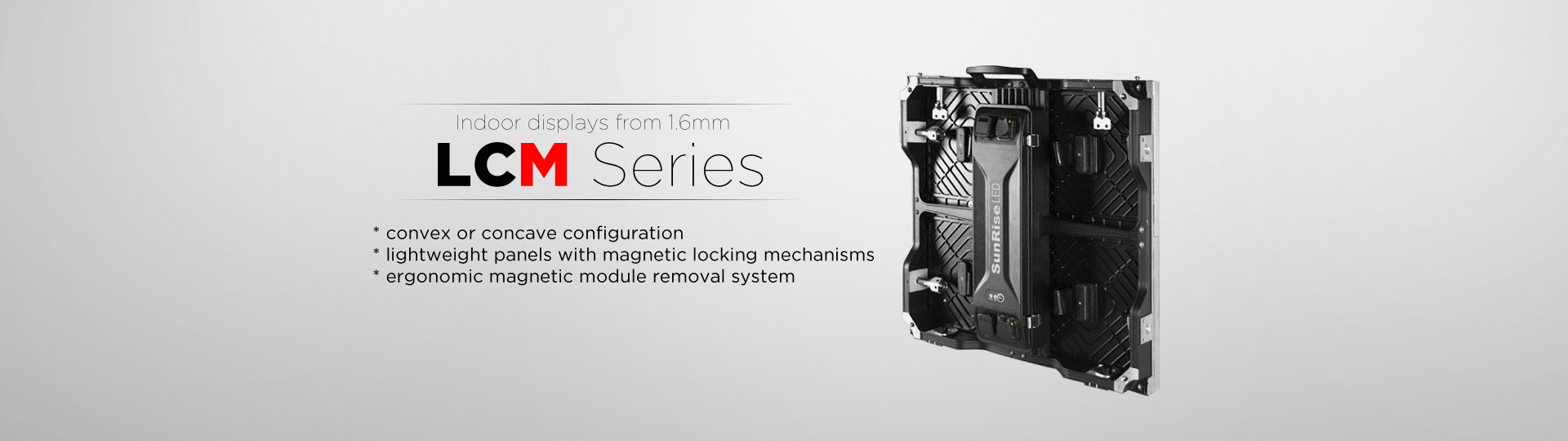

The high contrast ratio, superior color fidelity and mechanical accuracy of the LC-MS combine to create the ultimate high resolution indoor LED display. LC-MS is used extensively in the retail, broadcast, and entertainment industries and is available in a variety of pixel pitch options to suit all applications. LC-MS may be used for fixed or rental applications
| LCM 3 | LCM 4 | LCM 5 | |
|---|---|---|---|
| Physical Pitch Pixel | 3.9 mm | 4.6 mm | 5.2 mm |
| Configuration | SMD | SMD | SMD |
| Pixel Density | 65,536 pixels/m² | 46,656 pixels/m² | 36,864 pixels/m² |
| 16,384 pixels/panel | 11,664 pixels/panel | 9,216 pixels/panel | |
| LED Module Dimensions (mm) | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (W × H × D) (mm) | 500 × 500 × 80 | 500 × 500 × 80 | 500 × 500 × 80 |
| No. of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 64 × 64 | 54 × 54 | 48 × 48 |
| Physical Resolution of Panel (W × H) | 128 × 128 | 108 × 108 | 96 × 96 |
| Weight Per Panel | 7.9 kg/panel | 7.9 kg/panel | 7.9 kg/panel |
| Weight Per m² | 31.6 kg/m² | 31.6 kg/m² | 31.6 kg/m² |
| Processing | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 3,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 54 - 90 w/panel | 45 - 75 w/panel | 45 - 75 w/panel |
| Max Power Consumption | 180 w/panel | 150 w/panel | 150 w/panel |
| Operating Temp/Humidity | -20 - 50 ℃/ 10% - 90% | -20 - 50 ℃/ 10% - 90% | -20 - 50 ℃/ 10% - 90% |
| Storage Temp/Humidity | -30 - 60 ℃/ 10% - 90% | -30 - 60 ℃/ 10% - 90% | -30 - 60 ℃/ 10% - 90% |
| Brightness | 5,000 nits | 5,000 nits | 5,000 nits |
| Refresh Rate | 1,920 - 3,840 Hz | 1,920 - 3,840 Hz | 1,920 - 3,840 Hz |
| Horizontal Viewing Angle | 160° | 140° | 140° |
| Vertical Viewing Angle | 140° | 120° | 120° |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20 panels | 20 panels | 20 panels |
| Max Hanging | 16 panels | 16 panels | 16 panels |
| Servicing | Front and Back | Front and Back | Front and Back |
| IP Rating | IP 65 | IP 65 | IP 65 |
| Certification | CE, EMC ClassA, ETL, RoHS | CE, EMC ClassA, ETL, RoHS | CE, EMC ClassA, ETL, RoHS |
Church
Project: South Korea
Product model：LC M
Year：2015
2 Year Free Parts/Factory Labor Warranty
For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered. If you experience a hardware failure with a covered product during the plan’s term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.
Dual backup system
Power supply, signal cable, control system, socket backup available
High Color Fidelity
All LED lamps used in our displays are carefully screened to ensure compliance with our proprietary RGB wavelength’s and stringent quality standard.
This unique selection method during the manufacturing process, ensures color uniformity and consistency by default, setting the standard in high performance LED Displays.
Using 16-Bit signal processing, the SunRise LED display system is able to produce 65,536 shades of red, 65,536 shades of blue and 65,536 shades of green. (216 = 65,536), resulting in a display that has the ability to reproduce an astonishing 281 trillion colors. (65,536 x 65,536 x 65,536 = 281,474,976,710,656).
Smooth, crisp, vivid images displaying real colour, are now a reality.
Front Serviceable
Using the patented POP in POP out magnetic tool any module within the screen matrix can be removed from the front in seconds with very little effort.
Mechanically Precise
Panels are manufactured by a precision CNC process, ensuring a tolerance of less than 0.1 mm, creating a seamless panel to panel and module to module connection.
