Bay Lights

Unique optic solution with
The traditional bell-shaped appearance

Bay Light Specification

SunRise LED Inc. LED, our business concept for lighting:

First and foremost, we provide high performance at an affordable price.SunRise LED street lighting provides high energy efficiency LED lighting solutions for highways, interstates, parking lots and more. Switching to LED lights is a responsible and eco-friendly choice to reduce energy consumption by over 50%. Our modular design offers maximum light output while using significantly less power. The 30W-300W SunRise LED street light series can replace traditional cobra heads of 70-1000W. Because of their unique solid-state design, LED lights require no warm up time; they are extremely durable, require virtually no maintenance, and have a very long life expectancy.SunRise LED street lights are available in a variety of color temperatures with wide beam coverage. Offering street lighting with excellent performance and style that fits into a broad range of outdoor environments, the energy saving Polara ST Series LED Roadway Street Lights utilize LM-80 LEDs to ensure long life and high thermal endurance for the municipality market segments. Available in 30 to 240watt (30W/module, range from 1 to 10 modules) models in 4000 to 6000K correlated color temperatures (CCT). SunRise LED Polara lights illuminate streets, roadways, pedestrian walkways, bikeways and parking lots, corporate and school campuses, municipalities and much more. Our advanced modular design structure can be adapted to meet different lumen requirements for street lighting applications. These lights deliver up to 29260 lumens to support main and ancillary streets, and are available in three IES beam distribution types

SunRise LED street lights are available in a variety of color temperatures with wide beam coverage. Offering street lighting with excellent performance and style that fits into a broad range of outdoor environments, the energy saving Polara ST Series LED Roadway Street Lights utilize LM-80 LEDs to ensure long life and high thermal endurance for the municipality market segments. Available in 30 to 240watt (30W/module, range from 1 to 10 modules) models in 4000 to 6000K correlated color temperatures (CCT). SunRise LED Polara lights illuminate streets, roadways, pedestrian walkways, bikeways and parking lots, corporate and school campuses, municipalities and much more. Our advanced modular design structure can be adapted to meet different lumen requirements for street lighting applications. These lights deliver up to 29260 lumens to support main and ancillary streets, and are available in three IES beam distribution types.

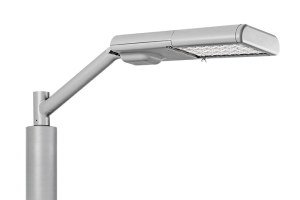

SunRise LED Polara ST Series LED Street Light Features:

• Replaceable and upgradeable modular design.
• Durable, die-cast aluminum housing
• Easy assembly, easy installation, and tool-free maintenance.
• Advanced modular structure design for excellent heat dissipation performance
• Universal (120 to 277) volt operation with no re-strike delay; 347-480volt models available by custom order
• High luminance uniformity with accurate light
• Advance light distribution technology
• Angle adjustable and applicable different mounting arm.
• Photocell and timing control optional• IP65 rating
• Dimmable

Construction

The modular die cast frame secures thermally conductive extruded aluminum alloy heat sink to independent electrical chamber. The revolutionary design allows for passive cooling and natural self-cleaning, ensuring our LED street lights offer superior heat dissipation and eliminating any issues with dust or moisture.
Tool-free maintenance: Simple and reliable snap-in type opening and closing structure for separate driver/electronics compartment. Fast plug in/out connector design for wiring ensures quick and convenient installation and maintenance of your LED street lights.

Optics

The Polara ST Series LED street light offers different optics manufactured from injection molded acrylic to meet customized application requirements.

Electrical

• Input Voltage: UNIV 100V – 277V• Optional 347V-480V• Power Factor: 95%• Frequency Range: 50/60Hz• Driver Current: 700Am• Surge Protection: 4-10Kv

Physical Performance

• LED Type: CREE XP-G/Philips Lumiled• LED driver: Philips XITANIUM LED driver• LED Lifetime: >50,000 hours• Color Temperature: 4000K – 6000K• Color Rendering Index: >70

Housing color

Cold grey, matt white or matt black.Mounting
• Routing Arm Branch with adjustable Tilt from 30° to 90°
• Diameter: Φ60
• Easy replacement for traditional light fixtures

Controls

• Standard without Photocell
• Optional Photocell• Optional Dim: 0-10V
• Optional timing

Other

• IP Rating: 65
• Operating Temperature: -40° to 55°C
• Operating Humidity: 10-95%

3 Year Free Parts/Factory Labor Warranty with Optional Extended Warranty Plan

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered.If you experience a hardware failure with a covered product during the plan’s term, simply call your distributor, report the issue, and if after basic troubleshooting the issue cannot be resolved over the phone, you will be given instruction for the next steps to making the necessary repairs.
