Die cast aluminum housing.
Modular design allows for easy installation, replacement and maintenance.
Slim & low profile design that minimizes wind load.
IK08 rated
aurora-u flood Light
specifications
POWER
450-900W
INPUT
120-277VAC or 220-240VAC or 347-480 VAC
PF
>0.95
L70/L90
>200,000H/>60,000H
OPERATING TEMPERATURE
-40℃ ~ +50℃
EFFICACY
120-160lm/W
ANSI CCT
3000K/4000K/5000K/5700K
IP RATING
IP67
COLOR OPTIONS
Grey/Black/Bronze/White
CONTAROL
Photocell/Motion Sensor/DALI/LORA/PLC/D4i/1-10V dimming
CERTIFICATES
IP67/UL/CUL/DLC/LM79/SAA/ENEC/ CB/CE/ErP/RoHS/PSE/IK08
MODEL (NORMINAL POWER)
FLD450 /450W, FLD600 /600W, FLD750/ 750W, FLD900/900W
APPLICATION

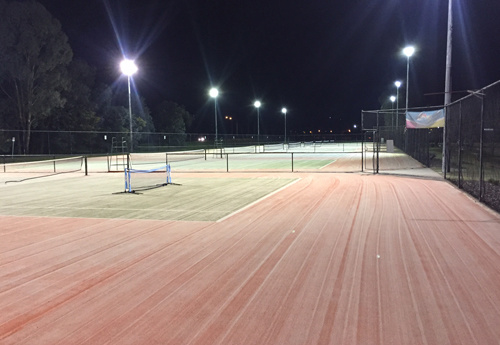

Airport/Auto dealership/Architecture light/ Industrial & warehouse/High mast lighting/Stadium
DOCUMENTS
| Model No. |
System Power |
LED Modules |
LEDs |
EPA (sq.ft) |
Net Weight |
Gross Weight |
Product Dimensions |
Carton Dimensions |
Drive Current |
Luminous Flux |
Efficacy (lm/W) |
|
| 3000K |
4000/ 5000K |
|||||||||||
| FLD : 120-277VAC | ||||||||||||
| FLD450-U | 463W | 6 | 216 | 0.721 | 19.96kg (44.00Ibs) | 22.2kg (48.94Ibs) | 24.49"x26.77"x4.41" | 29.53"x28.74"x6.69" | 700mA | 56255lm | 62505lm | 135 |
| FLD600-U | 615W | 8 | 288 | 0.787 | 23.06kg (50.84Ibs) | 24.93kg (54.96Ibs) | 29.21"x26.77"x4.41" | 34.25"x28.74"x6.69" | 74723lm | 83025lm | 135 | |
| FLD750-U | 770W | 10 | 360 | 0.894 | 27.5kg (60.63Ibs) | 29.9kg (65.92Ibs) | 36.30"x26.77"x4.41" | 41.34"x28.74"x6.69" | 93555lm | 103950lm | 135 | |
| FLD900-U | 924W | 12 | 432 | 0.971 | 30.98kg (68.30Ibs) | 34.8kg (76.72Ibs) | 41.02"x26.77"x4.41" | 46.06"x28.74"x6.69" | 112266lm | 124740lm | 135 | |
| FLG : 347-480VAC | ||||||||||||
| FLG450-U | 463W | 6 | 216 | 0.721 | 19.96kg (44.00Ibs) | 22.2kg (48.94Ibs) | 24.49"x26.77"x4.41" | 29.53"x28.74"x6.69" | 700mA | 56255lm | 62505lm | 135 |
| FLG600-U | 615W | 8 | 288 | 0.787 | 23.06kg (50.84Ibs) | 24.93kg (54.96Ibs) | 29.21"x26.77"x4.41" | 34.25"x28.74"x6.69" | 74723lm | 83025lm | 135 | |
| FLG750-U | 770W | 10 | 360 | 0.894 | 27.5kg (60.63Ibs) | 29.9kg (65.92Ibs) | 36.30"x26.77"x4.41" | 41.34"x28.74"x6.69" | 93555lm | 103950lm | 135 | |
| FLG900-U | 924W | 12 | 432 | 0.971 | 30.98kg (68.30Ibs) | 34.8kg (76.72Ibs) | 41.02"x26.77"x4.41" | 46.06"x28.74"x6.69" | 18252lm | 20280lm | 130 | |
PRODUCTS DETAIL
01.HOUSING
02.FINISH
Corrosion resistant polyester powder painted 100μm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Standard colors: Grey, Black, Bronze and White.
Customized colors are available.
03.LED ＆ OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Over 20 optical lenses are available for virtually any application.
Each LED module are 100% tested prior to assembly which is IP67 rated.
04.MOUNTING
The trunnion mount bracket allows for great mounting flexibility.
05.Electrical/ Key Components/ Controls
450/600/750/900W
120-277VAC and 347-480VAC available.
Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002 available.
High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
Keywords:
Architecture lighting
Energetic lighting LED area light
Factory lighting
Warehouse lighting
Flood lights outdoor
Auto dealership lighting
ED flood Light LED floodlights
LED project light
APPLICATIONS
Polara AURORA Series LED:
Features & Benefits
Die cast aluminum housing
Corrosion resistant polyester powder painted 100 μm thickness
Standard colors: Gray, Black, Bronze and White. Customized colors are also available
Over 20 optical lenses are available for virtually any application
Each LED module is 100% tested prior to assembly which is IP67 rated
