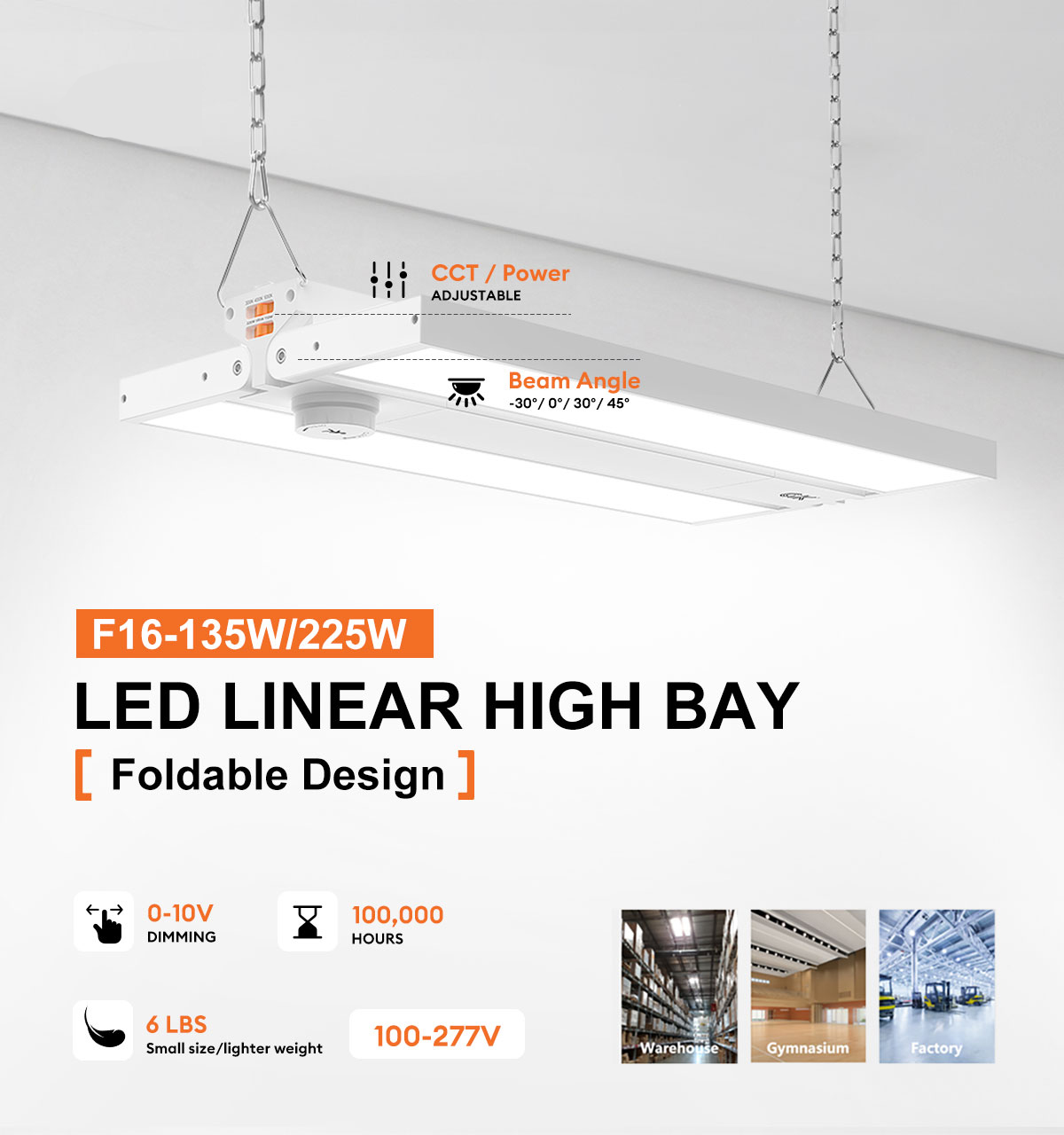

- 135W/110W/85W, 225W/185W/150W
LED linear foldable
135W 225W
0-10V Dimming
CCT/Power Adjusable
-40°C to 50°C
6LBS Small size/Light weight
Beam angle -30°/0° and 30°, 45°
IP40
100,000 Hours
- Directional adjustment of lighting angle
- 0-10v dimming
- 100,000 hours service life
- Small size and light weight
- Easy to install
Information

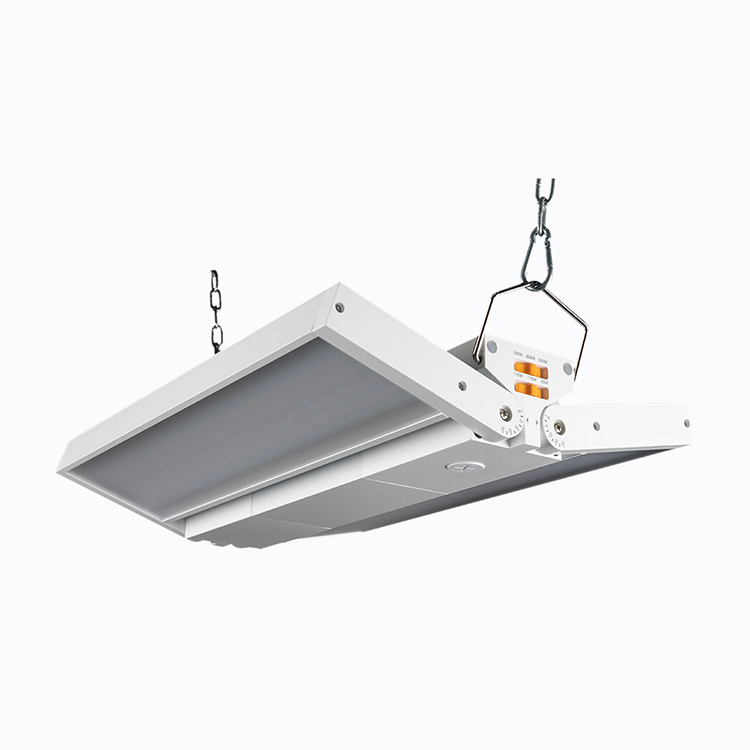

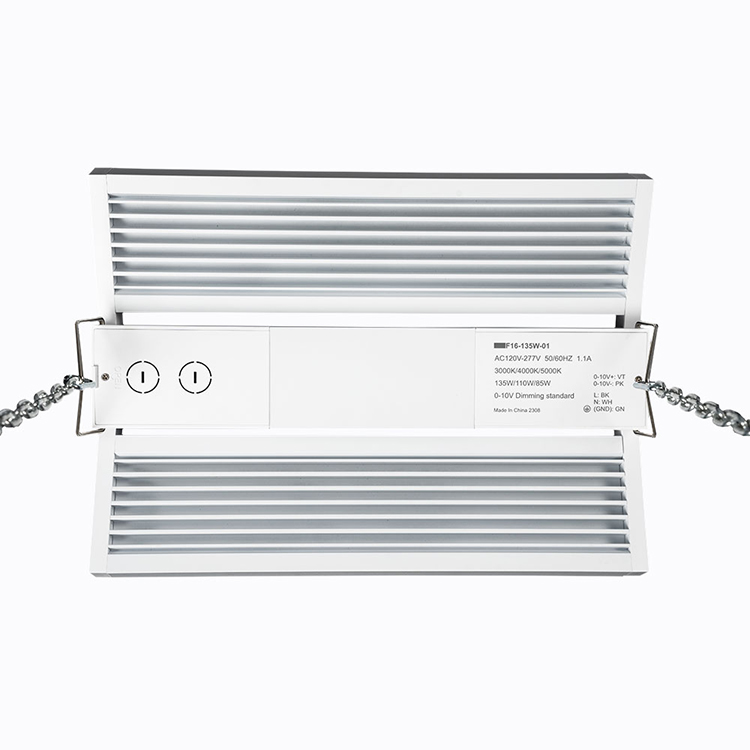

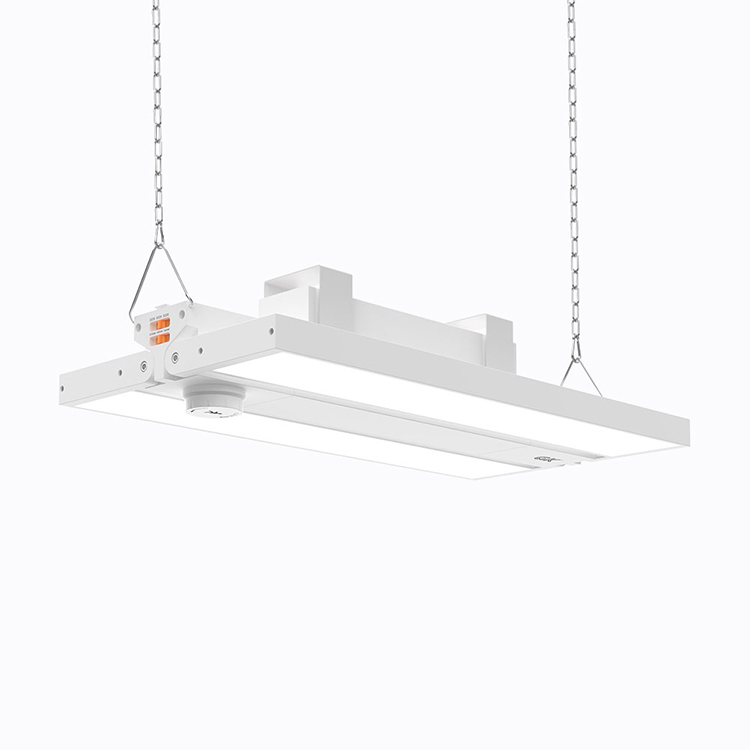

LED indoor high power ceiling light with adjustable directional lighting GKF16
- Power and CCT tunable fifixture (100-277V)
- Power : 135W/110W/85W, 225W/185W/150W
- CCT: 3000K/4000K/5000K
- Dimming: 0-10V dimming standard.
- Comes with expansion port for sensors

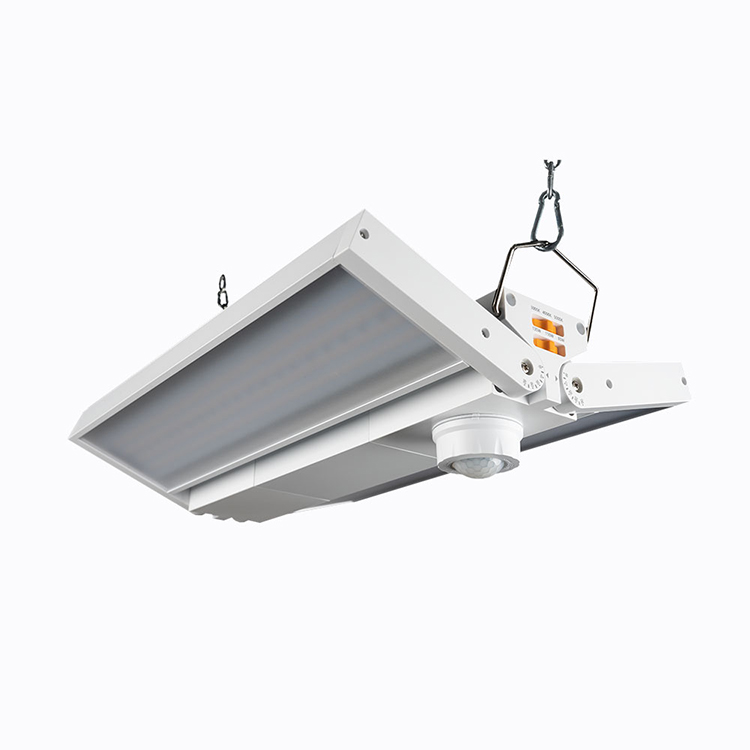

- PIR and microwave sensor kits available

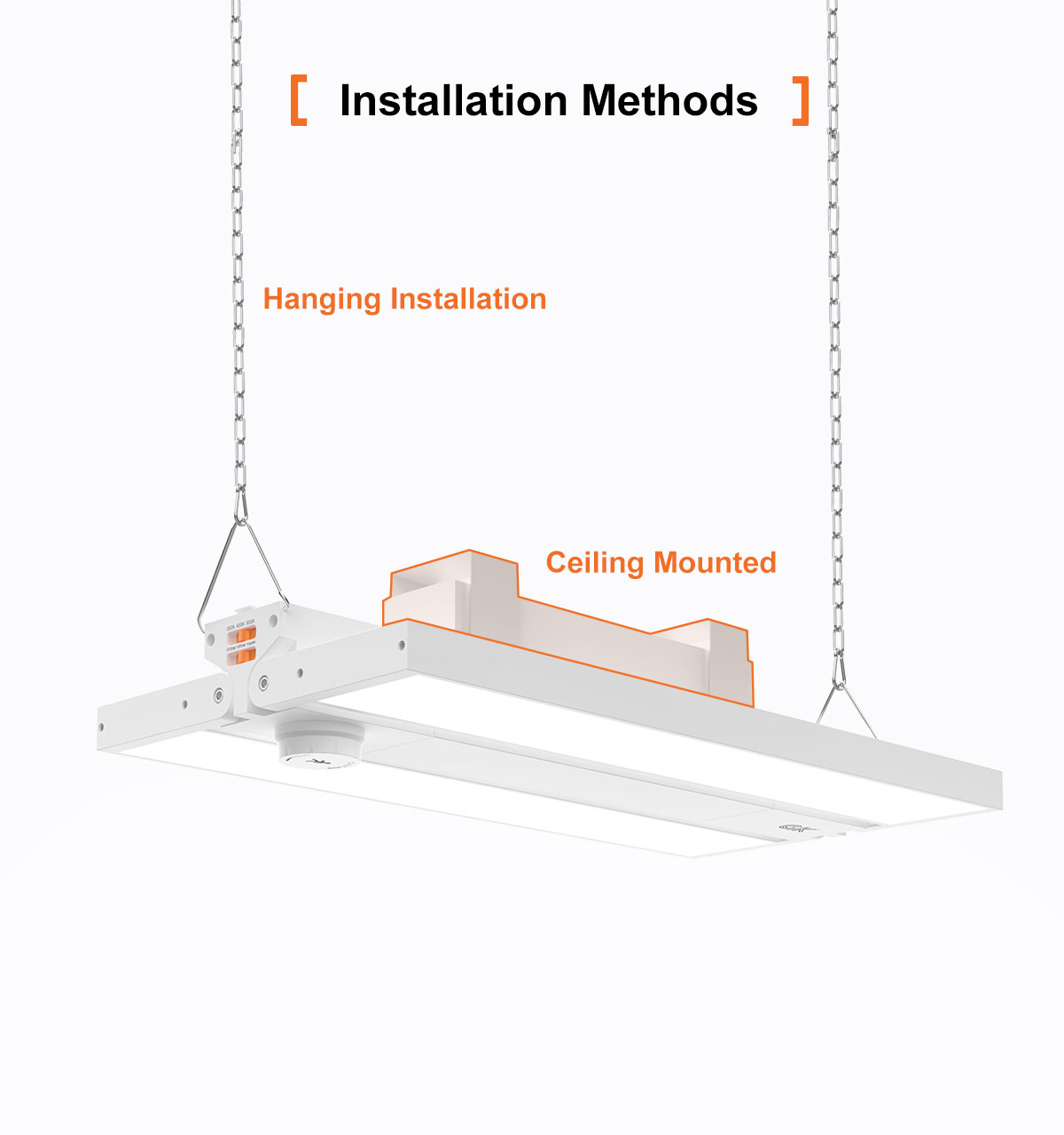

- Installation methods: ceiling mounted and hanging installation
- DLC Premium listed
- 100,000-hrs lifespan based on IES LM-80 and TM-21 calculations
- 5-year, limited warranty
- Optional accessories include boom junction box, ceiling mounted base, emergency power supply.
- -30°, 0°, 30°, 45° beam angle adjustable

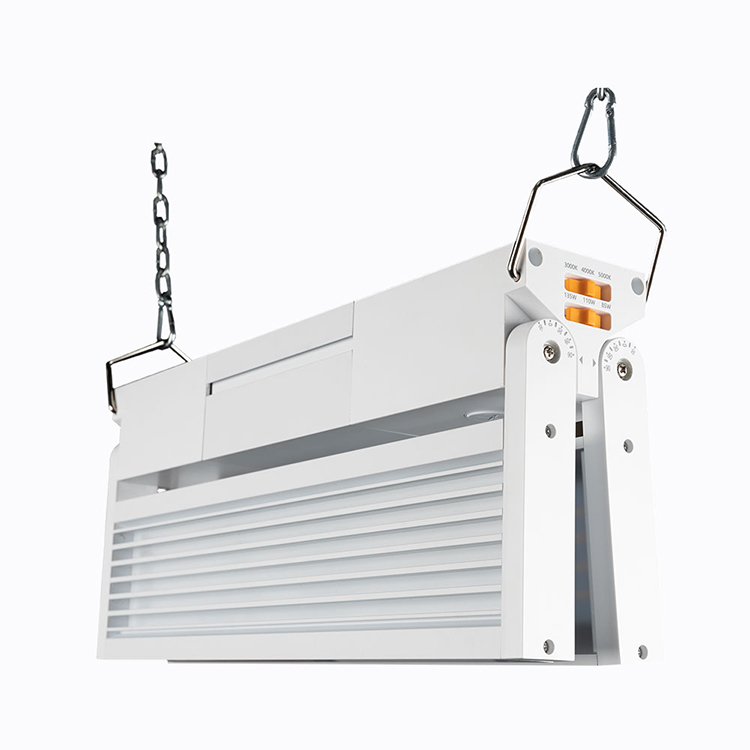

- Folding design, package space saving，reduce shipping cost.
| Traditional Source | F16 LED System Wattage | Energy Savings |
| 200W MH/HPS | 85W | 57% |
| 250W MH/HPS | 110W | 56% |
| 320W MH/HPS | 135W | 57% |
| 400W MH/HPS | 150W | 63% |
| 500W MH/HPS | 185W | 63% |
| 750W MH/HPS | 225W | 70% |

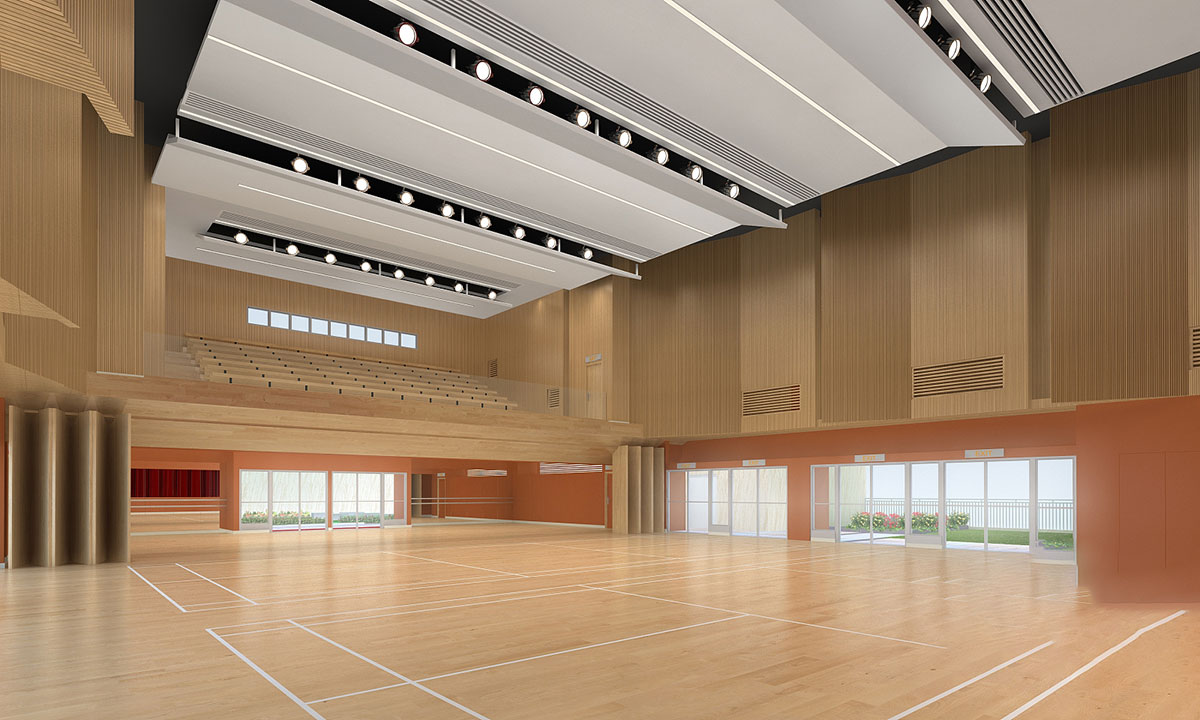

Application
LED Indoor High Wattage Ceiling Light Adjustable Directional Lighting GK-F16
Advantage:

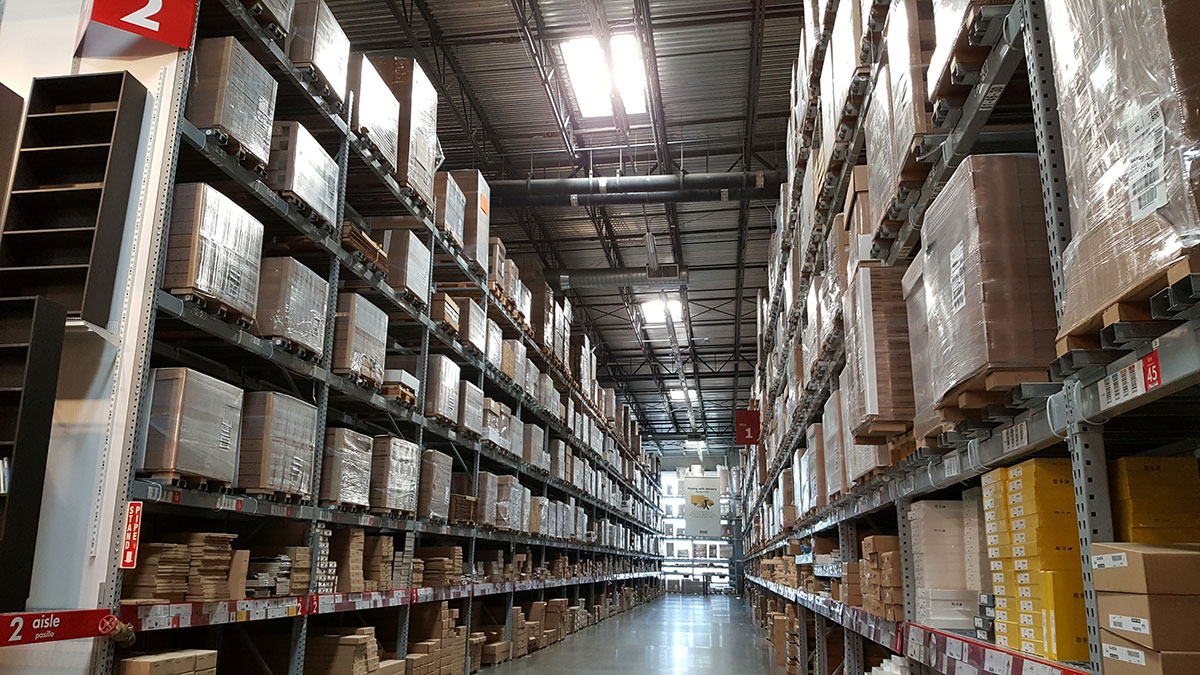

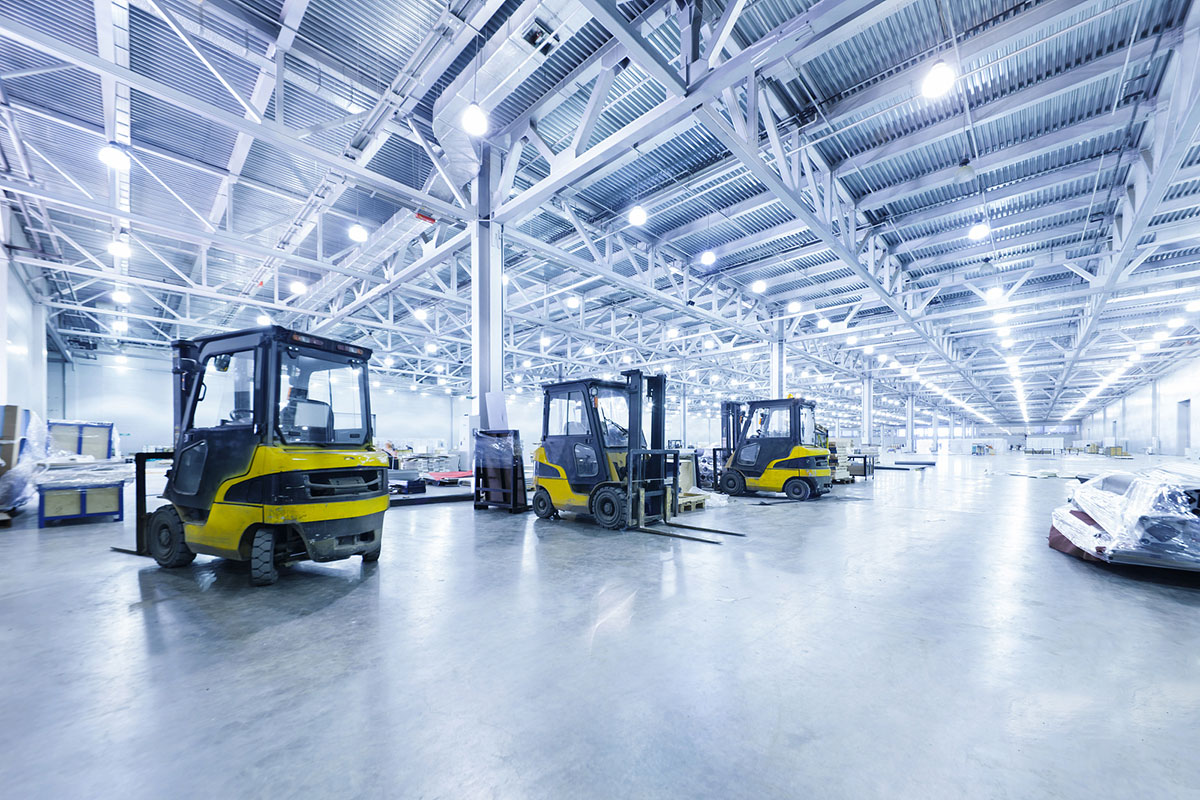

F16 LED linear high bay is a more environmentally friendly alternative to
traditional lighting products, with an energy efficiency of up to 70%,
making it ideal for warehouses, supermarkets, stadiums, etc.
Video

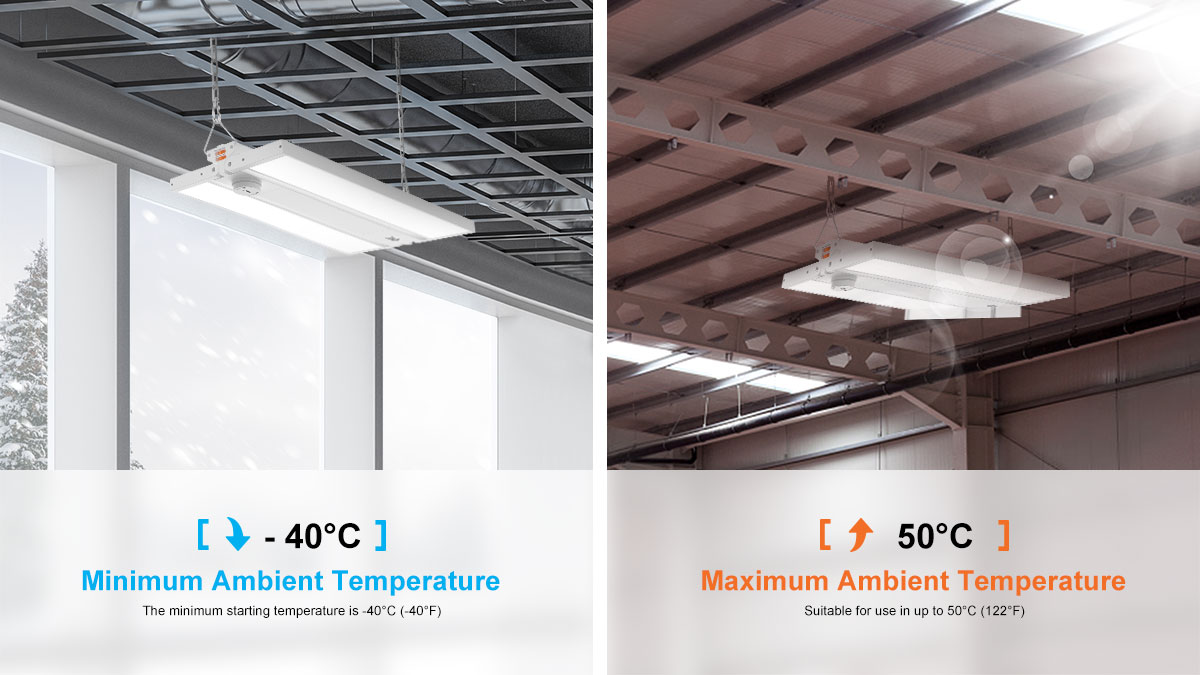

Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 50°C (122°F)
Mounting
Rope hanging standard installation. Boom junction box and
emergency power kits are sold separately.

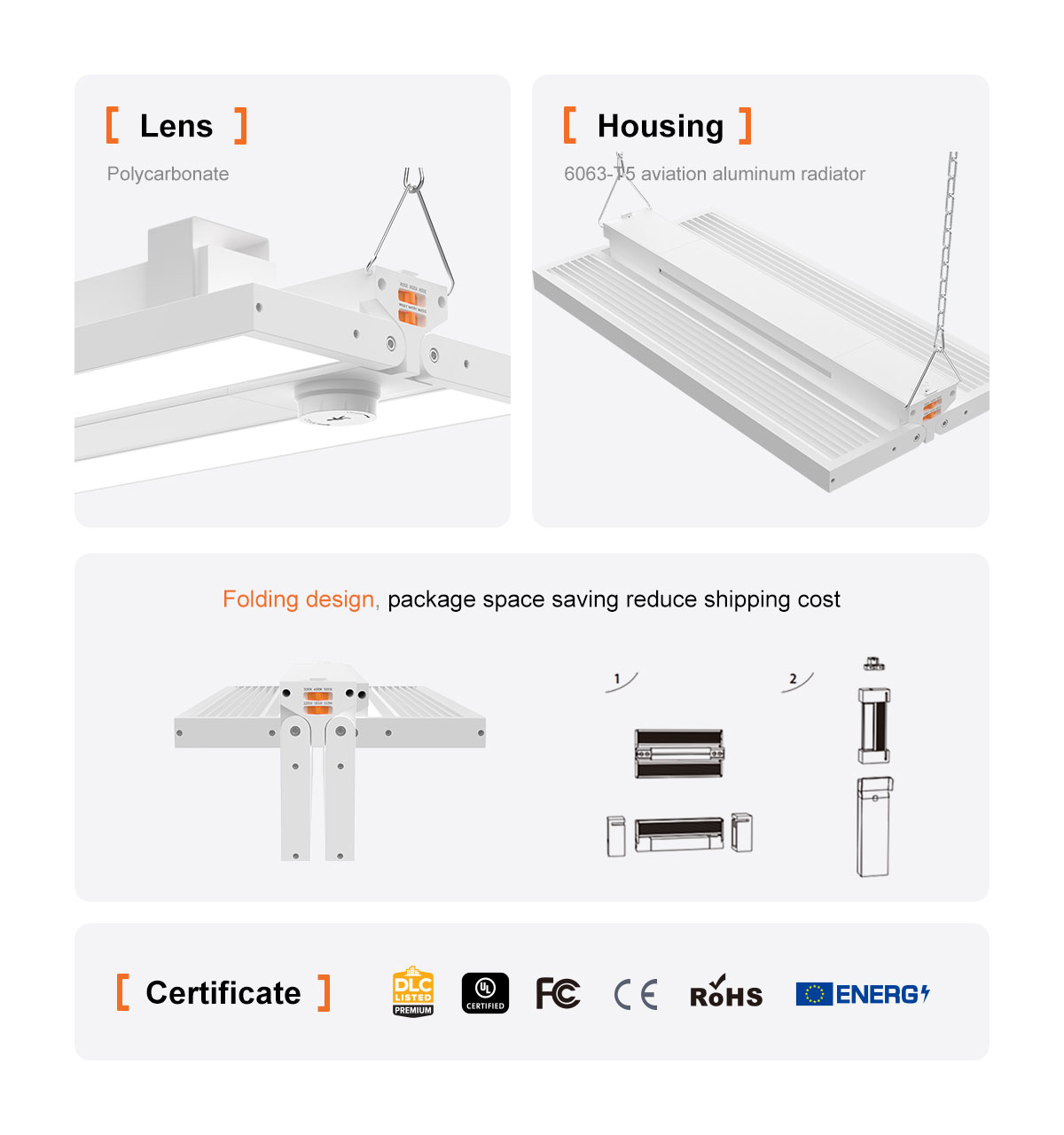

Housing
6063-T5 aviation aluminum radiator
Lens
Polycarbonate
Re ector
Polycarbonate / Aluminum
Green Technology
Mercury and UV free. RoHs-compliant components.
Finish
Formulated for high durability and long lasting color
IP Rating
IP40, can be used in damp environment

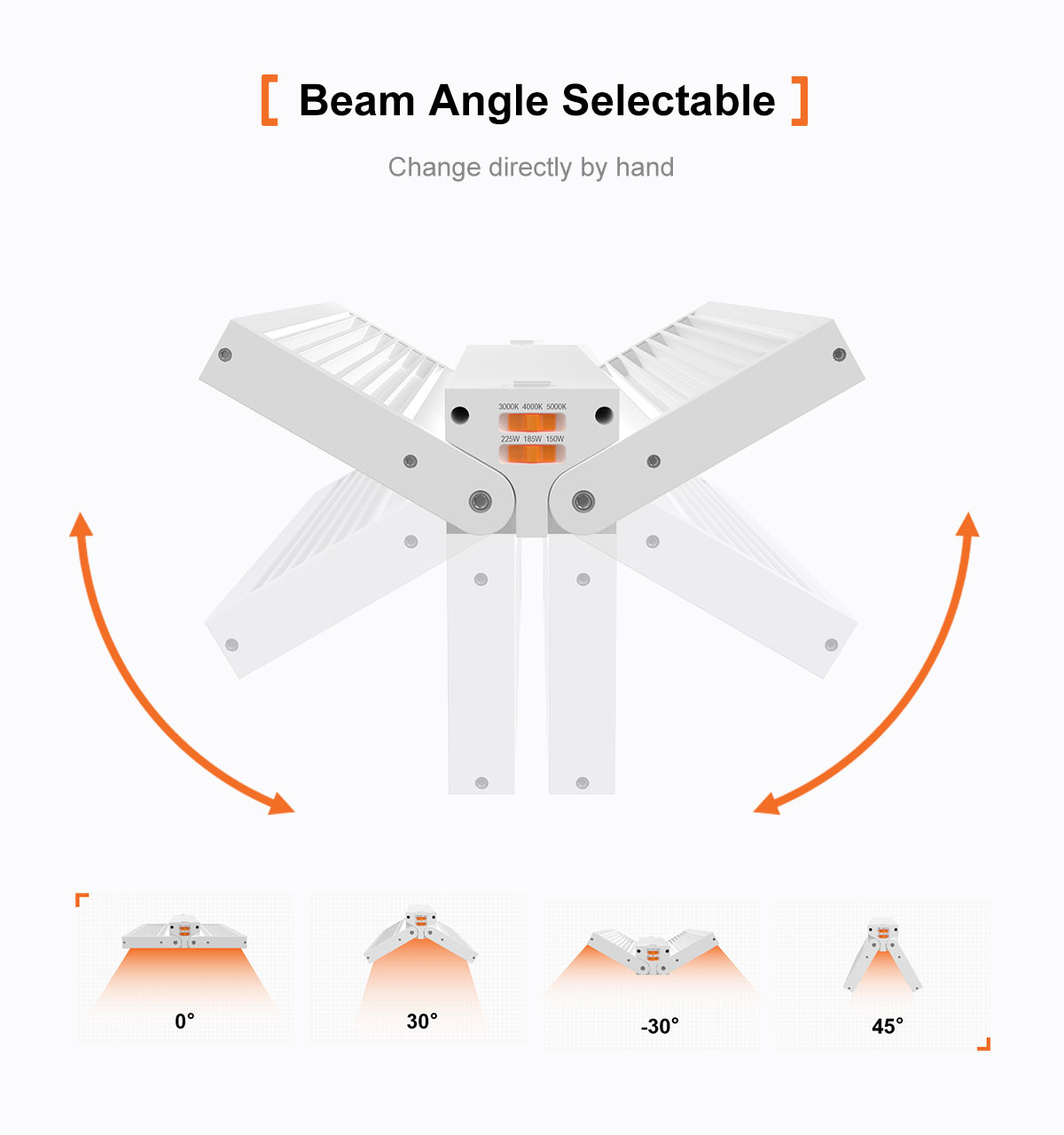

Adjustable Beam Angle
Adjustable luminous surface: -30 °, 0 °, 30 °, 45
