Our Newest LED Panels

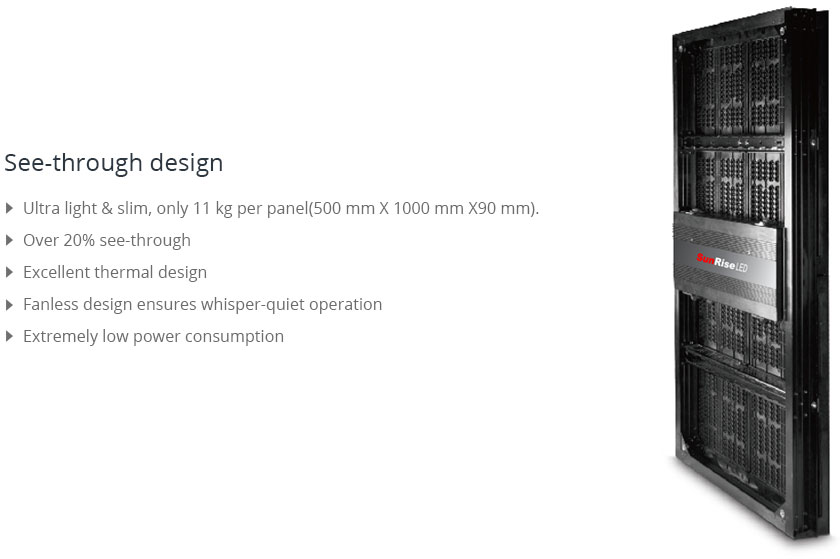

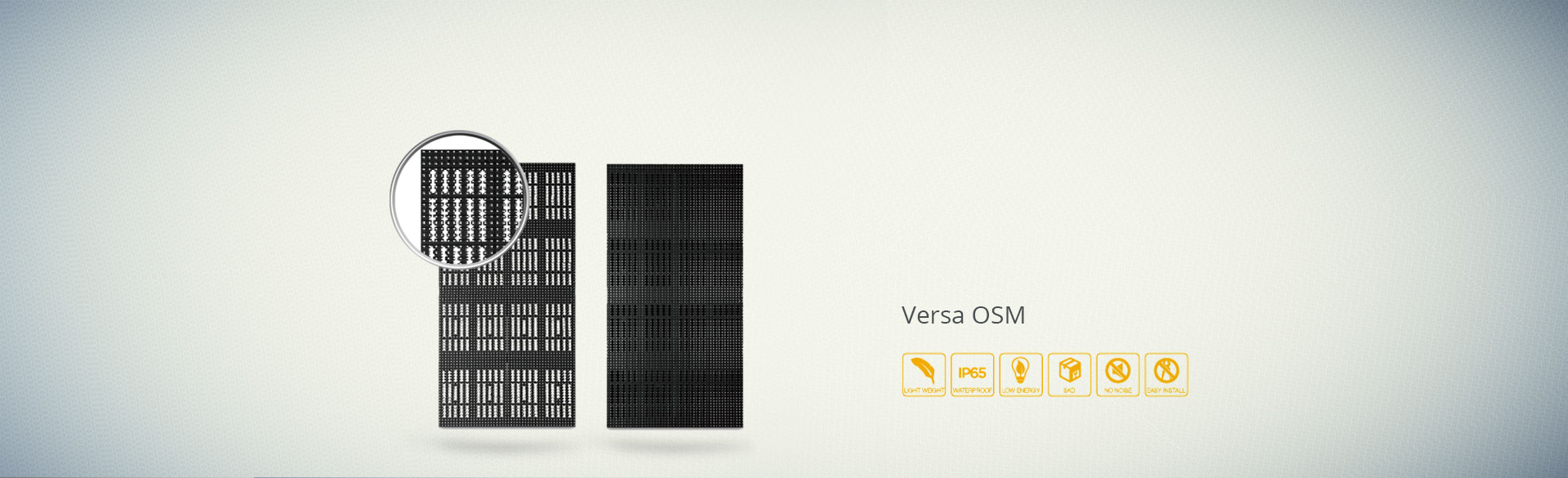

Versa OSM modular LED are available in semi-transparent or solid configurations. High definition and extremely stable, Versa OSM have an IP65 rating to ensure operation in the harshest environments. Versa OSM are front and rear servicable and are an ideal substitution for traditional bulky and heavy LED displays. Fanless and quiet, Versa OSM displays consume little power, have a high refresh rate and at 6500 nits offer beautiful and bright color reproduction.
Pixel Configuration 3-in-1 black body SMD
Physical Pitch 12.5mm
Pixel Density 9,216 Pixels/sqm 4,608 Pixels/Panel
Module Dimensions(W x H) 250mm x 500mm
No. of Modules Per Panel(W x H) 2 x 2
Module Physical Resolution(W x H) 20 x 40
Panels Dimensions(W x H x D) 500mm x 1000mm x 93.7mm
Panel Physical Resolution(W x H) 40x80
Weight Per Panel 11.5 kg
Weight Per m2 23kg/m2
Brightness 6500 nits
Viewing Angle H:140 degrees V:120 degrees
Contrast Ratio 3000:1
Power Consumption(max) 265w/panel
Processing 16 bit/color
Colors 281 trillion colors
Driving Method 1/2 Scan
Refresh Rate >1500Hz
LED lifetime expectation 100,000Hrs
IP Rating IP65
Max Stacking 20 Panels
Servicing Front and Back (Front:Tool required)
Certification CE classA(TUV),EMC
Pixel Configuration 3-in-1 black body SMD
Physical Pitch 15.6mm
Pixel Density 4,096 Pixels/sqm 2,048 Pixels/Panel
Module Dimensions(W x H) 250mm x 500mm
No. of Modules Per Panel(W x H) 2 x 2
Module Physical Resolution(W x H) 16 x 32
Panels Dimensions(W x H x D) 500mm x 1000mm x 93.7mm
Panel Physical Resolution(W x H) 32x64
Weight Per Panel 11.5 kg
Weight Per m2 23kg/m2
Brightness 6500 nits
Viewing Angle H:140 degrees V:120 degrees
Contrast Ratio 3000:1
Power Consumption(max) 265w/panel
Processing 16 bit/color
Colors 281 trillion colors
Driving Method 1/2 Scan
Refresh Rate >1500Hz
LED lifetime expectation 100,000Hrs
IP Rating IP65
Max Stacking 20 Panels
Servicing Front and Back (Front:Tool required)
Certification CE classA(TUV),EMC
Pixel Configuration 3-in-1 black body SMD
Physical Pitch 10.4mm
Pixel Density 9,216 Pixels/sqm 4,608Pixels/Panel
Module Dimensions(W x H) 250mm x 500mm
No. of Modules Per Panel(W x H) 2 x 2
Module Physical Resolution(W x H) 24 x 48
Panels Dimensions(W x H x D) 500mm x 1000mm x 93.7mm
Panel Physical Resolution(W x H) 48 x 96
Weight Per Panel 11.5 kg
Weight Per m2 23 kg/m2
Brightness 6500 nits
Viewing Angle H:140 degrees V:120 degrees
Contrast Ratio 3000:1
Power Consumption(max) 265w/panel
Processing 16 bit/color
Colors 281 trillion colors
Driving Method 1/2 Scan
Refresh Rate >1500Hz
LED lifetime expectation 100,000Hrs
IP Rating IP65
Max Stacking 20 Panels
Servicing Front and Back (Front:Tool required)
Certification CE classA(TUV),EMC
