Our Highest Resolution LED Panel Yet

Versa 2.5 modular LED units are similar to our other VersaTiles; modular, lightweight and easy to service; with the added benefit of higher resolution (2.5mm) and improved design. They feature updated ultra-slim TileCrate enclosures, which allow direct access through the front or back of the individual units, the abliity to curve up to 10 degrees (convex or concave), magnetic locking mechanisms with ergonomic magnetic removal tools and extra heavy duty guide bars in each panel that prevent misalignment or edge damage during removal. With the TileCrate enclosure, which measures 22.6 x 17 in., each unit weighs 22 lbs. Versa 2.5 panels feature improved cooling for tight indoor installations and are in our opinion the most exciting panels we’ve made yet!

The units can be assembled in “S” curves, half circles and almost any shape you can imagine. They’re manufactured using high-impact, flame-retardant ABS plastic, with a built-in firewall retention feature. Like all of our asynchronous display solutions Versa2.5 displays come complete with our VersaNet software suite at no additional cost to you.

ETV 1.5mm

ETV 1.5mm

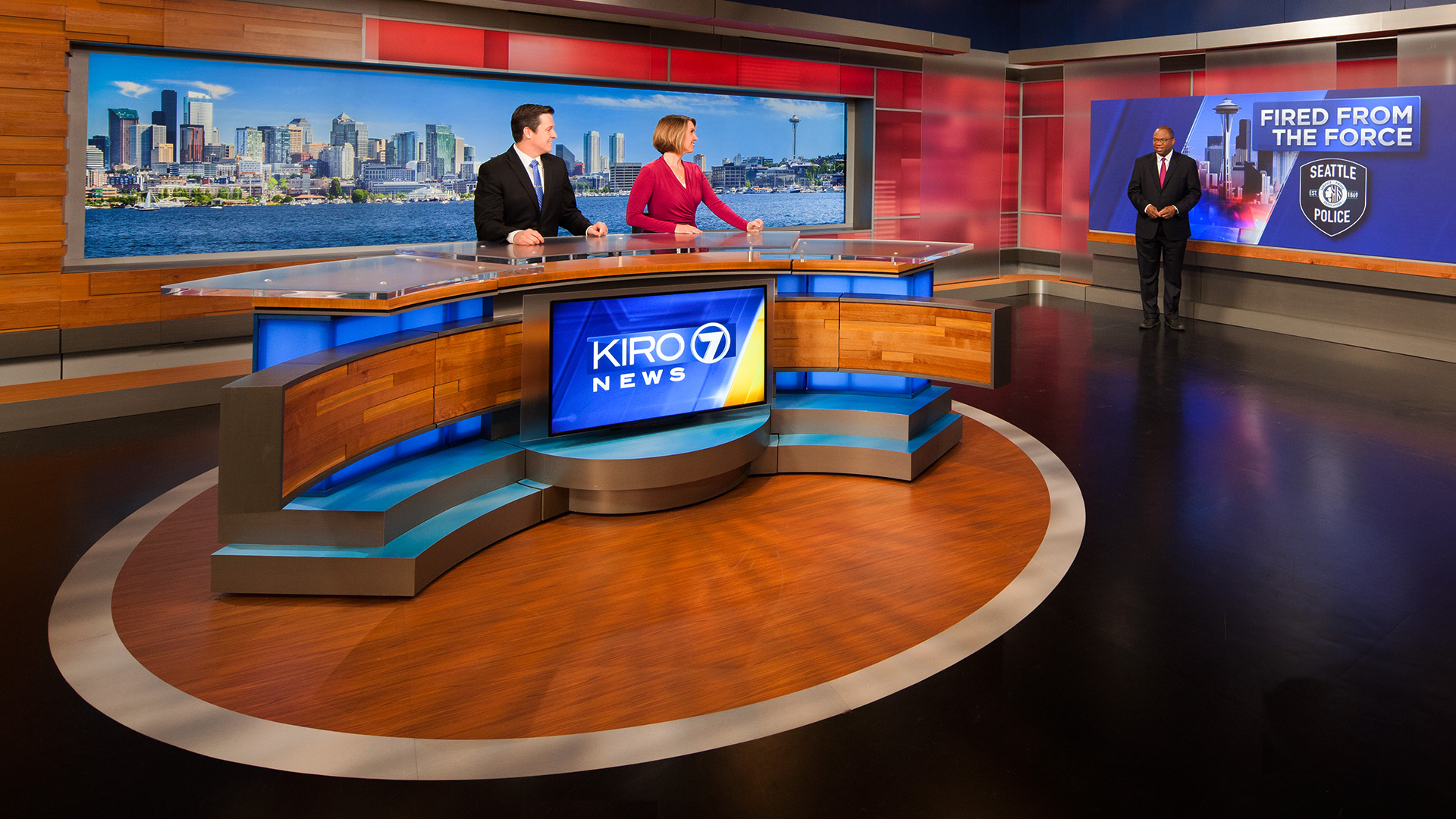

KIRO, USA,2015

Product model:ETV1.5mm

Project size:60 sqm

Year:2015

ETV 1.5mm

ETV 1.5mm

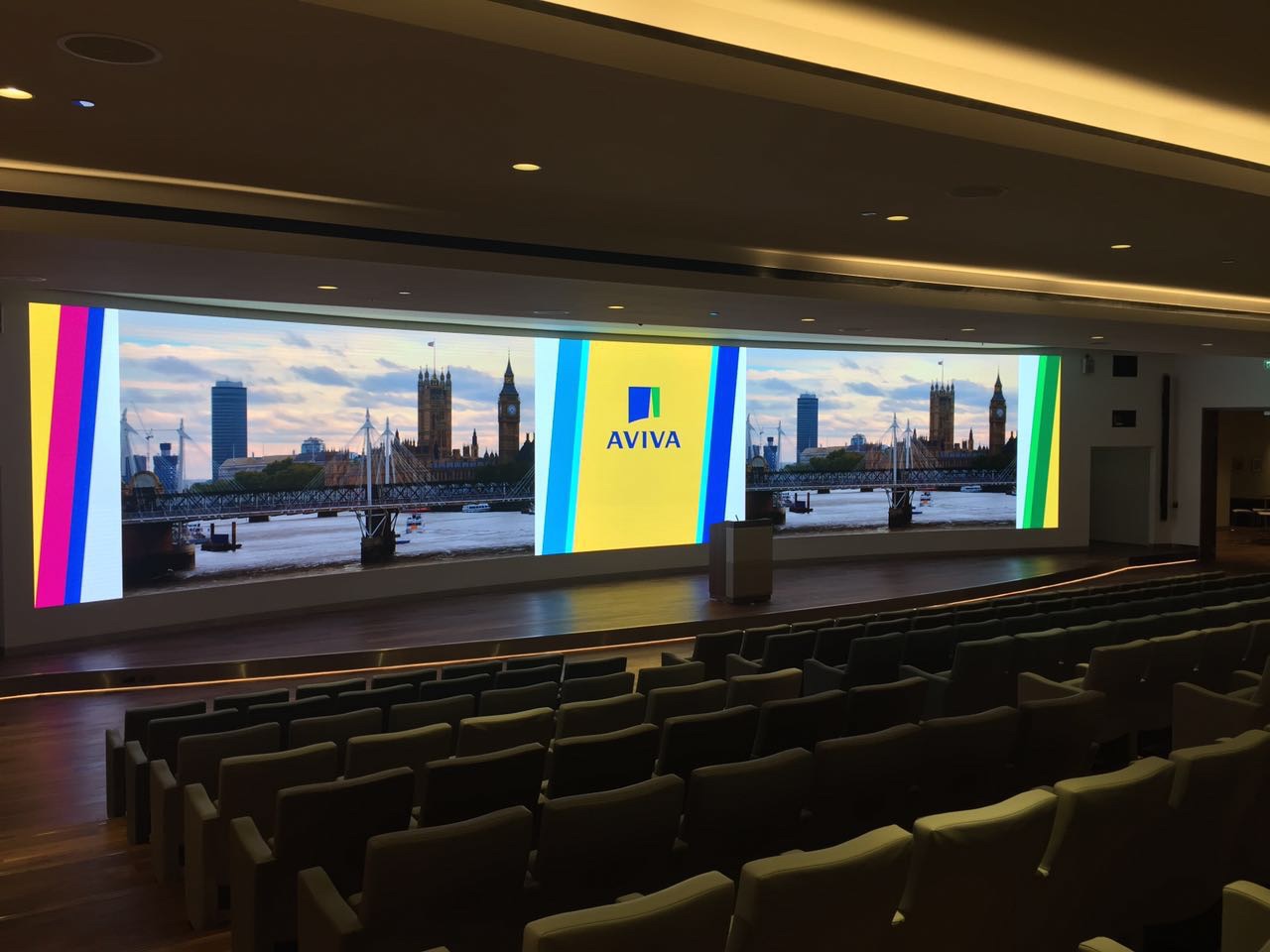

London AVIVA Center

Product model:Upanel1.5

Year:2015

ETV 1.5mm

ETV 1.5mm

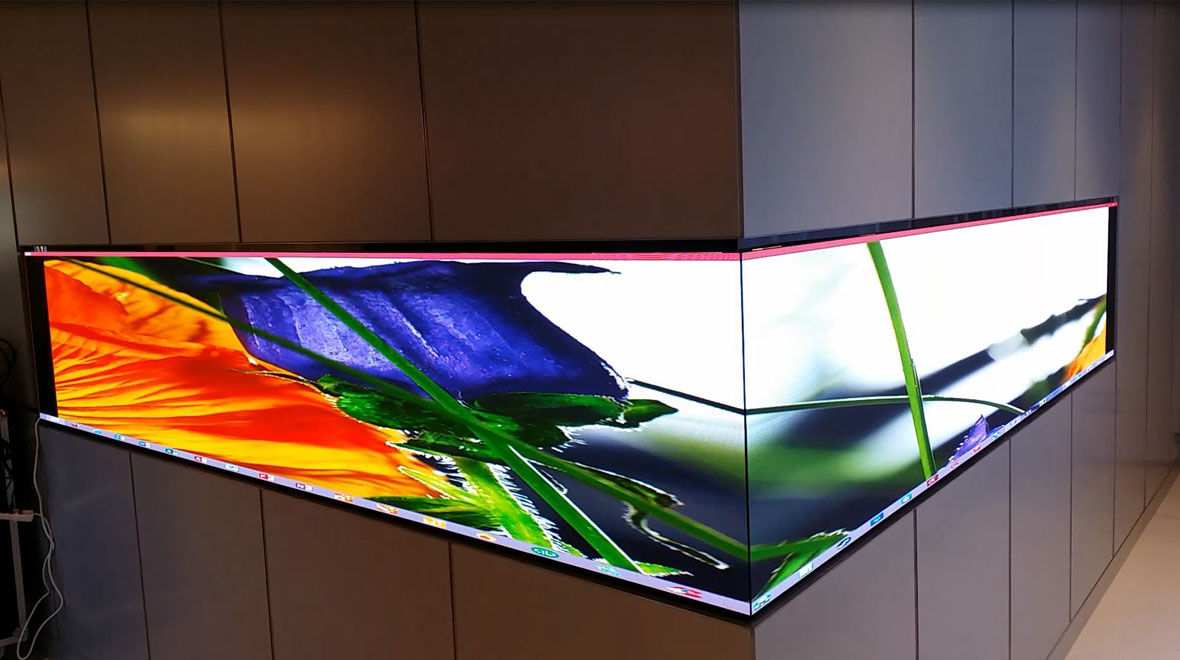

New Jersey, USA,2016

Product model:ETV1.5mm

Project size:5 sqm

Year:2016

ModelLCMs 1.4 MMLCMs 1.6 MMLCMs 1.9 MMLCMs 2.2 MMLCMs 2.6 MM
Physical Pitch1.4 mm1.6 mm1.9 mm2.2 mm2.6 mm
Pixel ConfigurationSMDSMDSMDSMDSMD
Pixel Density451,584 pixels/m²360,000 pixels/m²262,144 pixels/m²200,704 pixels/m²147,456 pixels/m²
112,896 pixels/panel90,000 pixels/panel65,536 pixels/panel50,176 pixels/panel36,864 pixels/panel
LED Module Dimensions (mm)250 × 250250 × 250250 × 250250 × 250250 × 250
Panel Dimensions (W × H × D) (mm)500 × 500 × 78500 × 500 × 78500 × 500 × 78500 × 500 × 78500 × 500 × 78
No. of Modules Per Panel (W × H)2 × 22 × 22 × 22 × 22 × 2
Physical Resolution of Module (W × H)168 × 168150 × 150128 × 128112 × 11296 × 96
Physical Resolution of Panel (W × H)336 × 336300 × 300256 × 256224 × 224192 × 192
Weight Per Panel7 kg/panel7 kg/panel7 kg/panel6.5 kg/panel6.5 kg/panel
Weight Per m²28 kg/m²28 kg/m²28 kg/m²26 kg/m²26 kg/m²
Processing16 bit16 bit16 bit16 bit16 bit
Colours281 trillion281 trillion281 trillion281 trillion281 trillion
Contrast Ratio4,000 :14,000 :14,000 : 14,000 : 14,000 : 1
Average Power Consumption46 - 77 w/panel46 - 77 w/panel50 - 84 w/panel38 - 63 w/panel38 - 63 w/panel
Max Power Consumption153 w/panel153 w/panel168 w/panel126 w/panel126 w/panel
Operating Temp/Humidity-10 - 40 ℃/ 10% - 60%-10 - 40 ℃/ 10% - 60%-10 - 40 ℃/ 10% - 60%-10 - 40 ℃/ 10% - 60%-10 - 40 ℃/ 10% - 60%
Storage Temp/Humidity-30 - 60 ℃/ 10% - 60%-30 - 60 ℃/ 10% - 60%-30 - 60 ℃/ 10% - 60%-30 - 60 ℃/ 10% - 60%-30 - 60 ℃/ 10% - 60%
Brightness800nits800 nits800 nits1200 nits1200 nits
Refresh Rate1,920 - 3,840 Hz1,920 - 3,840 Hz1,920 - 3,840 Hz1,920 - 3,840 Hz1,920 - 3,840 Hz
Horizontal Viewing Angle160°160°160°160°160°
Vertical Viewing Angle140°140°140°140°140°
Expected LED Lifetime (Max)100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
Max Stacking20 panels20 panels20 panels20 panels20 panels
Max Hanging16 panels16 panels16 panels16 panels16 panels
ServicingFront and BackFront and BackFront and BackFront and BackFront and Back
IP RatingIP 30IP 30IP 30IP 30IP 30
CertificationCE, EMC ClassA,CE, EMC ClassA,CE, EMC ClassA,CE, EMC ClassA,CE, EMC ClassA,
ETL, RoHS, FCCETL, RoHS, FCCETL, RoHS, FCCETL, RoHS, FCCETL, RoHS, FCC

3 Year Free Parts/Factory Labor Warranty

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered.

If you experience a hardware failure with a covered product during the plan’s term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instruction for the next steps for making the necessary repairs.

\r\n

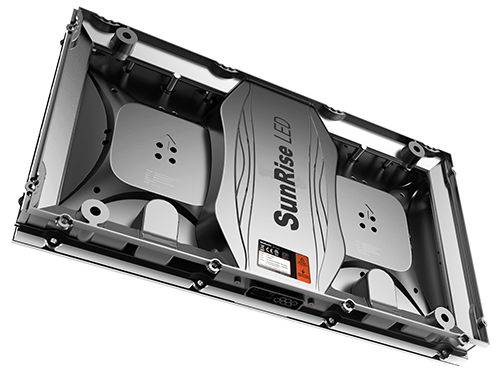

Intelligent front access

Non-touching system
All module, system, power supply and cable are front access

16:9 ratio

The word’s first golden ratio of 16:9 standard cabinet
which is in line with human eye pupil ratio
2K, 4K and 8K compatible

Bezel-free

Dual backup system

Power supply, signal cable, control system, socket backup available

Automatic detection

Each LED module supports temperature
voltage and connection detection

Automatic calibration

Before Calibration

After calibration
