SunRise LED Polara Series LED lighting

SunRise LED offers energy efficient LED lighting solutions for many applications. Featuring an innovative design, ONE lamp can be used in SIX types of brackets: canopy surface mount, canopy recessed mount, flood light tilt, tunnel light type, wall pack type, pendant mount type high/low bay. Available in 30 to 240watt (30W/module, range from 1 to 10 modules) models in 4000 to 6000K correlated color temperature (CCT), the Polara lights could be widely used in warehouse, factory, workshop, gym, shop, gas station, parking garage, building, corporate and school campuses and municipalities etc. Our advanced modular design structure helps to realize power savings by reducing the module quantity in order to meet different lumen requirements for street lighting. These lights deliver up to 26180 lumens to support main and ancillary streets, and are available in different IES beam distribution types for different projects.

More Facts
polar_flood_lght

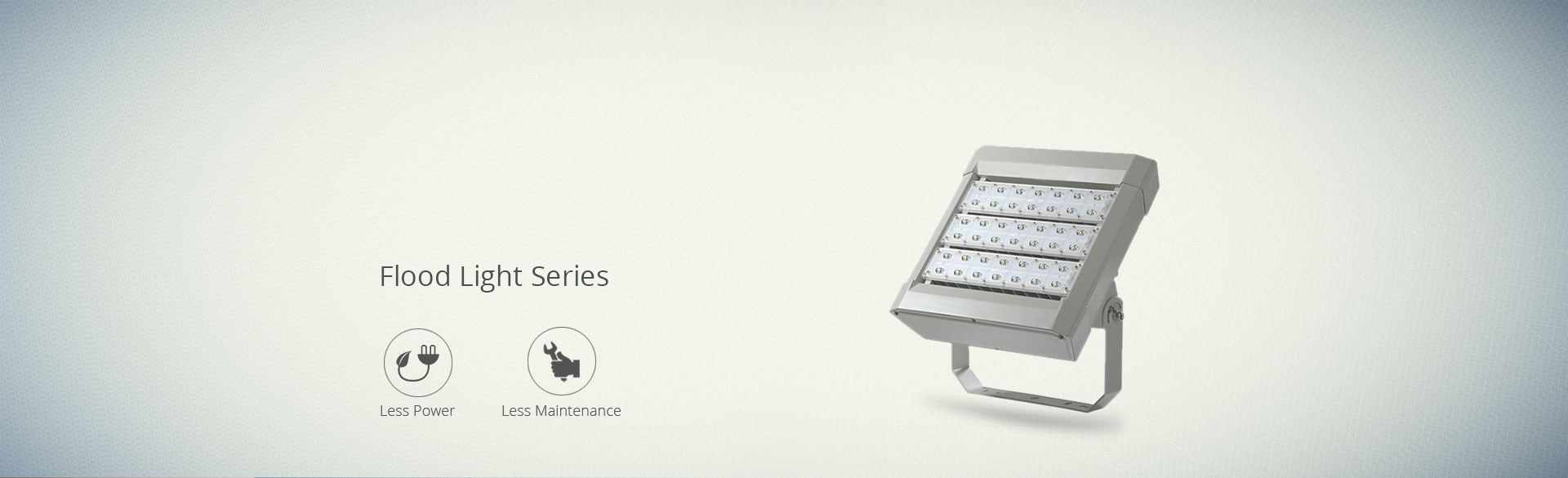

Polara FL series LED flood light

LED flood lighting is one of the most widely used functional and decorative light appcations for urban environments and architectural lighting. SunRise LED floodlights are pure in color,offer high-brightness, feature long light projection distance and strong fog penetration ability. Our lamps are made of aluminum alloy, are fully sealed, and are both dustproof and waterproof. Beam angle is adjustable to achieve many lighting effects and is an ideal choice for lighting and decorative purpose.• Durable die-casting aluminum alloy housing.• Complete produce range from 30W to 300W• Uniform illumination, wide flood lighting angle and no shade• Illumination distance between 5 to 30 meters• Superior heat-dissipation is achieved by our innovative modular technological design and aluminum housing• Wide range of input voltage, constant current and voltage• Long light projection distance with high-brightness LED and high-efficacy power supply

More Facts
wallpack

Polara WP series LED Wall Pack light:

The Polara WP series LED Wall Pack Luminaire offers superior energy savings in any wall mount application such as stairwell lighting, parking garages, perimeter lighting, parking facility entries and exits, over entries and exits, or any general security and safety lighting used outdoors.The Polara Series Wall Pack is ideal for replacing 70W to 1000W high intensity discharge (HID) lamps such as metal halide (MH) or high-pressure sodium (HPS) to provide 50% to 60% energy savings. SunRise LED Wall Pack lights turn on instantly and have full controller compatibility. When used with a photo-sensor they will provide additional energy savings of up to 80% when compared to HID.

Features & Benefits

• Modular LED structure of LED source, maximum up to 300W
• Optional accessories of photocell and infrared sensor(30-90W type only)
• 10%, 20%, 60%, 100% dimming control for saving energy
• Excellent security lighting when used with infrared sensor
• Various light distributions available
• Working environment temperature: -40oC to 55oCApplication: stairwell lighting, parking garages, perimeter lighting, parking facilities, or for any general security and safety lighting.

More Facts
gas_station

Polara GS series LED canopy lights:

Our SunRise LED GS series LED canopy light is designed and developed to replace traditional HID/HPS canopy light fixtures. Boosted by Cree XP Outdoor White LEDs and high-powered drivers, the Polara GS series canopy light is IP65 rated for all weather applications including dusty environments.The Polara GS series canopy lights use a smart modular design concept. Each module integrates the heat sink with 14 pcs LED chips, and a calculated number of modules are framed to make a complete canopy light. This smart modular concept gives ultimate flexibility to fit almost all application requirements for power and lighting purposes.Our Polara GS series LED canopy light covers a complete range of 30W, 60W, 90W, 120W, 150W, 180W, 210W, 240W, 270W and 300W.

Features

• Complete produce range from 30W to 300W.
• Extremely high lux output up to 26180lm.
• Smart modular design ensures superior heat management.
• IP 65 rating, water and dust proof.
• Voltage input 120-277V 50/60Hz, 347-480V 50/60Hz at choice.
• Selectable color temperature from 3000K to 6000K.
• Optional function as IP65 low bay/high bay.
• Long operation life time, above 50,000 hours. Low maintenance costs.
• Ideal replacement of 70W to 1000W conventional metal halide lamps.
• Energy saving more than 60%.
• Environmental friendly. Lead and mercury free.
• Instant ON/OFF operation, no more waiting for warm up.
• Superior color rendition compared to conventional luminaire.
• Resistant to shock and vibration.
• Installation: surface mount or recessed mount

Application:

factories, workshop, warehouses, road tollgates, gas stations, supermarkets, sports stadiums, convention centers, airports and more.

More Facts
tunnel

Polara TL Series LED tunnel light:

Our LED tunnel light is a new, low maintenance, energy-saving lighting option for these hard to access places. The need for high visibility during all hours of the day requires around the clock operation and reliability. Due to their long life and robust nature, luminaires designed with LEDs can reduce maintenance intervals and offer the added benefit of superior beam shaping capability which means you can put light where you need it.

Features:

• Complete product line, range from 30W to 300W.
• Extremely high lux output up to 26180lm.
• Smart modular design ensures superior heat management.
• IP 65 rating, water and dust proof.
• Voltage input choices: 120-277V 50/60Hz, 347-480V 50/60Hz.
• Selectable color temperature from 3000K to 6000K.
• Optional function as IP65 low bay/high bay.
• Long operation lifetime, more than 50,000 hours. Low maintenance costs.
• Ideal replacement of 70W to 1000W conventional metal halide lamps.
• Energy saving more than 60%.
• Environmental friendly. Lead and mercury free.
• Instant ON/OFF operation, no more waiting for warm up.
• Superior color rendition compared to conventional luminaire.
• Resistant to shock and vibration.

More Facts
highbay

ED high bay fixtures are perfect for use in high ceiling applications. Because of their intelligent design, these lights offer maximum light output using a fraction of the energy of a typical high pressure sodium or metal halide high bay light. These fixtures are perfect in a variety of settings from warehouses to retail. Because of their unique solid-state design, LED high bay lights are extremely durable, require virtually no maintenance, and have a long life expectancy.SunRise LED high bay lights are designed and developed to replace traditional high bay or low bay fixtures for industrial and other rugged applications. Light weight and easy to install, the LED High Bay/Low Bay fixtures are all designed to offer maximum energy savings, substantially reduced maintenance costs and superior quality.Polara HLB LED high bay series cover a complete range of: 30W, 60W, 90W, 120W, 150W, 180W, 210W, 240W, 270W and 300W which are mainly used in factories, workshop, warehouses, road tollgates, gas stations, supermarkets, sports stadiums, convention centers, airports, etc. where high ceiling lighting is required.

Features

• Individual high performance LED light engine.
• Up to 300W as direct replacement of 1000W HID
• Patented thermal management allows -40 C to 55 C ambient working temperature
• Easiest installation and maintenance experiences guaranteed Easiest one-man operation
• Hinged LED engine holder
• Quick connector between LED engine and drive
• IP65 rating.
• 3 available mounting options: Surface mount, recessed mount &pendant mount.
• 5 year warranty, up to 50,000 hours long life
• Dimmable feature available upon request

Application:

factories, workshop, warehouses, road toll gates, petrol stations, supermarkets, sports stadiums, convention center halls, airport passenger halls, etc

SunRise LED Polara Series Features:

• Replaceable and upgradeable modular design.
• Durable, die-cast aluminum housing
• Easy assembly, easy installation, and tool-free maintenance.
• Advanced modular structure design for excellent heat dissipation performance
• Universal (120 to 277) volt operation with no re-strike delay; 347-480volt models available by custom order
• High luminance uniformity with accurate light
• Advance light Distribution technology
• One lamp, six bracket types, could be used in many occasions.
• IP65 rating
• Dimmable

Construction

The modular die cast frame secures a thermally conductive extruded aluminum alloy heat sink to an independent electrical chamber. The revolutionary design allows for passive cooling and natural self-cleaning ensuring our LED street lights offer superior heat dissipation and eliminating any issues with dust or moisture.

Optics

The Polara Series LED light offers different optics manufactured from injection molded acrylic. Optics realize consistent distribution with the scalability to meet customized application requirements.

Electrical

• Input Voltage: UNIV 100V – 277V
• Optional 347V-480V
• Power Factor: 95%
• Frequency Range: 50/60Hz
• Driver Current: 700Am
• Surge Protection: 4-10Kv

Physical Performance

• LED Type: CREE XP-G/Philips Lumiled
• LED driver: Philips ADVANCED LED driver
• LED Lifetime: >50,000 hours
• Color Temperature: 4000K – 6000K
• Color Rendering Index: >70

Housing color

Cold grey, matt white or matt black.

Mounting

• Surface Mount
• Pendant Mount
• Recessed Mount
• Wall Mount

Other

• IP Rating: 65
• Operating Temperature: -40° to 55°C
• Operating Humidity: 10-95%

Certification

• IES Data Available – LM79 & LM80 National Listed Lab
• Tests In Accordance with IES Standards.
• UL, cUL, CE, CB, RoHS, DLC

3 Year Free Parts/Factory Labor Warranty with Optional Extended Warranty Plan

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered.If you experience a hardware failure with a covered product during the plan’s term, simply call your distributor, report the issue, and if after basic troubleshooting the issue cannot be resolved over the phone, you will be given instruction for the next steps to making the necessary repairs.
