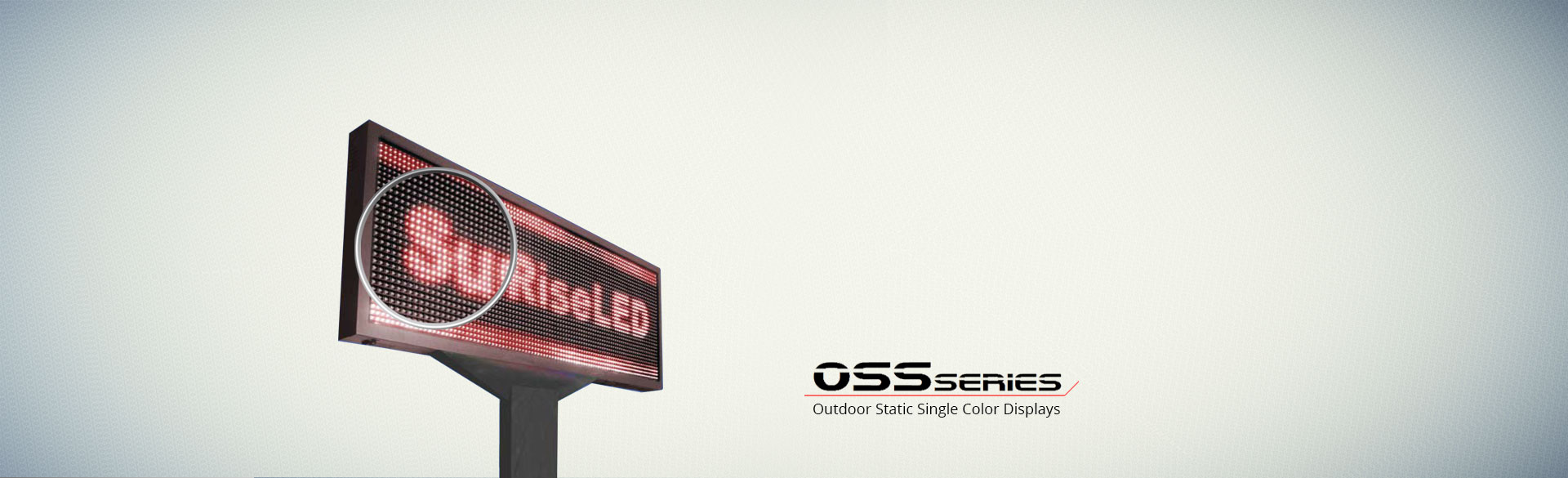

OSS Series Outdoor Single Color

Other Options
When monochrome is the choice but video / photographic quality messaging is the goal – the SunRise OSS Series delivers the highest level of performance possible in a 256 grayscale monochrome display.\r\n

Full Color

\r\n::: 16mm\r\n::: 20mm\r\n::: 25mm

Rock solid reliability, clear communications and cost-effectiveness combine to make the OSS the clear choice for budget-minded customers.\r\n

Single Color

\r\n::: 16mm\r\n::: 20mm\r\n::: 25mm

Designed to deliver high performance at a very affordable price, SunRise LED offers a wide variety of innovative models and configurations to meet both the consumer’s needs and budget.

The chart below will assist you in determining your LED display size. To utilize this chart effectively, choose your sign height first by selecting the number of modules (1-8) or pixel dimensions using the number on the left of the chart. Then choose the width by selecting the number of modules (1-12) or pixel dimensions using the numbers along the bottom of the chart. Because LED is manufactured in modules, you will need to choose sizes from the chart that are closest to the sign size you desire. Also, by clicking on one of the other Outdoor Sign charts you might customize a sign size closer to your needs. Once you have determined your display size, give your dealer a call to discuss details and get a price for the your custom LED Sign.

16mm Module 16mm Sizes20mm Module 20mm Sizes20mm Module 25mm Sizes
Scalable Design:

The Live Video series is available in many configurations, from about 1 by 3 cabinets to about 12 by 12 cabinets. Contact SunRise or a dealer near you for more information on size options.

Display Capabilities:

Different controller options can allow the Live Video displays to show many types of content; text, time, temperature, database information, full-color graphics, and VGA or DVI broadcasts.

Content Windowing:

Digital content can be "windowed" with multiple planes of content—text, time, temperature, full-color graphics, or video.

Viewing Angle:

A wide 140 degrees horizontal and 140 degrees vertical viewing angle provides many application options in many locations.

SunNet Pro: This is an optional software choice for all FC and FX models which enables you to control the sign through your PC.\r\n\r\nSunNet Pro supports most types of communication, such as Bluetooth wireless, Networking, RS 232, Fax Modem. Here are some additional features:\r\n\r\n• Schedule system\r\n• Brightness control\r\n• built-in movie editor\r\n• Image Scaling\r\n• Creating Scenario off of just one Image\r\n• Counter\r\n• Time, Temp\r\n• Over 100 Action effect over text or images

Pixel Composition2 Red, 2 Pure Green / 2 Amber
Display ColorRed, Green / Amber (256 Shades)
Brightness6,000 NITs (Average)
Lifetime (50% Brightness)50,000 Hours
Color Depth14 bit
Viewing Angle120° Horizontal / 55° Vertical
Wave LengthRed:630 | Pure Green:470 | Amber:400
Luminous IntensityRed:600mcd | Blue:1500mcd | P.Green:350mcd
Available SignalsDVI, S-Video, RGB, VGA and etc.
Accepted FilesText, Animation, Picture, Database, Video and etc.
Viewing Distance 32.8ft~328.1ft (10m~100m)
Operating Temperature -14°F ~ 158°F (-10°C ~ 70°C)
Operating Humidity10% ~ 90%
CasingAluminum or Steel case w/ black satin finish
(optional 1.2mm)
Water ProofingFront: IP65 / Backside: IP45
Warranty2 Years
3 Year Free Parts/Factory Labor Warranty For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered. Should a hardware failure occur, your Outdoor Display is covered by a 3-Year factory protection plan for parts at no extra charge. If you experience a hardware failure with a covered product during the plan's term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instruction for the next steps for making the necessary repairs.
