New Generation Outdoor/Indoor

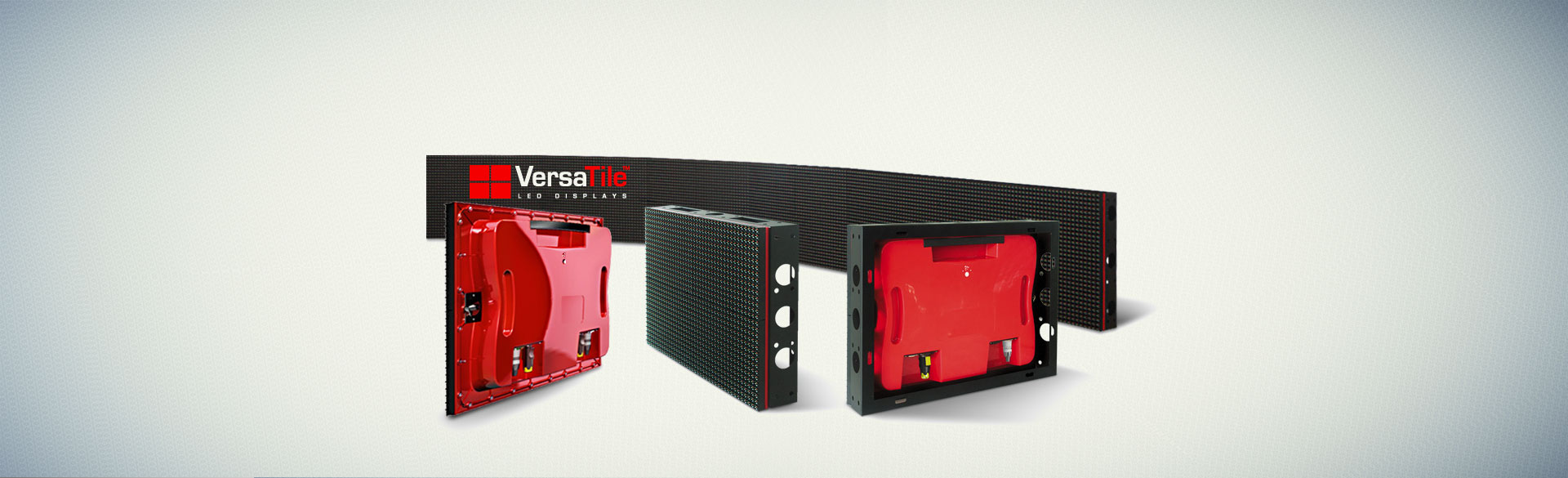

VersaTile™ modular LED units can be assembled for indoor and outdoor videowalls. They feature ultra-slim TileCrate enclosures, which allow direct access through the front or back of the individual units, and modular diversity for curved and shaped displays in myriad sizes. With the TileCrate enclosure, which measures 22.6 x 17 in., each unit weighs 15-19 lbs. The units are available in 6mm and 8mm sizes for indoor use, and 10, 14, 20 and 24mm sizes for outdoor. The units can be assembled in “S” curves, half circles and different shapes to form artistic displays. They're manufactured using high-impact, flame-retardant ABS plastic, with a built-in firewall retention feature. Please read more below (VersaNet System Features & why VersaTile?). * Please note - an active cooling solution is recommended in installations that are fully enclosed and/or in installations that experience extreme environmental heat.

Ultra-slim

\r\nVersaTile’s ™ innovative, ultra-slim enclosures allow direct access via the front or back of display.\r\n

Hot Swap with No Downtime

\r\nVersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing.\r\nIf a tile malfunctions you can swap it out with a spare in just a few minutes with no downtime.\r\n

Modular diversity

\r\nVersaTiles™ can be set up in a traditional block format or curved to form a unique display in just about any size. The modular nature of VersaTiles™ enables end-users to customize their video walls in limitless ways. From “S” curves and half circles to shapes and artistic displays, VERSATile™ sets the new standard in customer satisfaction.\r\n

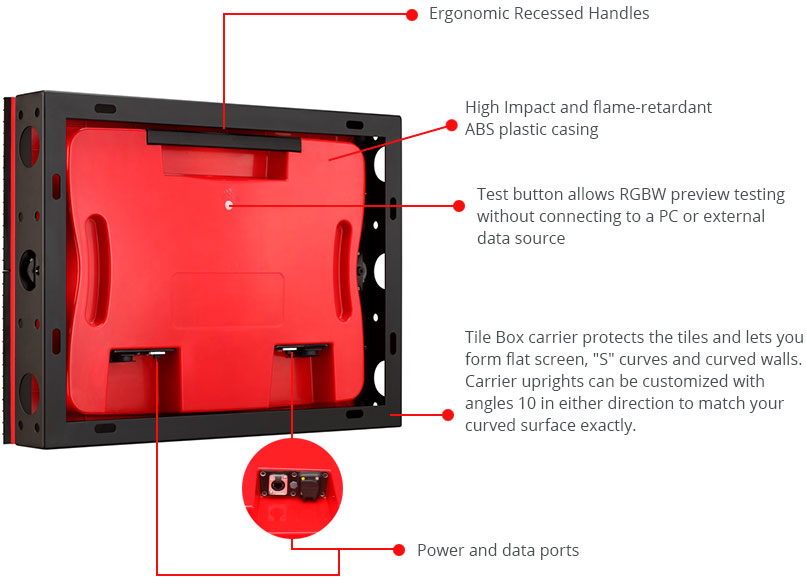

Lightweight, self-contained Modules

\r\nEach VERSATile™ includes a TileCrate enclosure that measures 22.6” x 17”, and weighs just 15-19 pounds depending weather they are for indoor or outdoor use. An onboard test button allows RGBW preview testing without a connection to an external PC or data source.\r\n

Multiple Pixel Arrays

\r\nThe compact VersaTiles™ are available in 6mm and 8mm for indoor; 10, 14mm for outdoor.\r\n

Easy to Install

\r\nEach TileCrate™ framing enclosure connects modules quickly and simply. Once your TileCrate™ frame is assembled, simply place the VERSATile™ in and lock into place with the provided hex-wrenches.\r\n

Safe and Durable

\r\nVersaTiles™ are manufactured using high impact, flame retardant ABS plastic and have a built in firewall retention feature.\r\n

VersaTiles™ are perfect for Fixed Install or rental.

\r\nEach VERSATile™ is individually boxed for easy storage and shipping. To fulfill orders dealers just pull the appropriate number of boxes out of inventory and ship. The unique packaging format also makes it very easy to transport to a job site for install. No crane or heavy lifting, just bolt the TileCrate™ together and snap the VersaTiles™ in place.\r\n\r\nVersaTiles™ – The future of LED today.

\r\n

VersaNet System 2014

\r\nWe are pleased to announce the new and improved VersaNet™ software and controller systems for 2014. Featuring an Asynchronous system with an Independent media player, a PC/Laptop connection is no longer required. PLUS, the 8GB SD card installed in each controller provides extended hours of high-quality video play.\r\nThe new and improved VersaNet™ software and controller systems also feature:\r\n

Failure Notification:

\r\nIf the controller is connected to the Internet, you can set up email notifications if the system experiences any failure.\r\n

Play Log Management:

\r\nThe VersaNet system automatically keeps a log of the times and dates of segments played successfully and/or if there were any system failures. This is perfect for rental scenarios when Proof of Play information is required for customers.\r\n

Play Control & Play Screen Shot

\r\nYou can control, pause and replay the message while it is still playing. Using Screen Shot, you can see what is playing live on the display from a remote location.\r\n

Storage Management

\r\nOn board storage and an 8 GB SD card which allows you to store content and view available storage space.\r\n

Display Manager

\r\nManage multiple signs at multiple locations by grouping displays remotely.\r\n

Live, remote monitoring the display

\r\nView the status of each VersaTile™ module.\r\n

Dynamic IP Configurations

\r\nSimply connect to your network and the VersaNet™ software will search and find the controller.\r\n

Pixel Level Color Calibration

\r\nAll VersaTiles™ are pre-calibrated at the factory to ensure consistent color and brightness regardless of the production run. The color and brightness can be controlled right down to the pixel on each VersaTile™ module.\r\n

Automatic Voltage and Temperature Control Adjustment

\r\nOnboard technology in VersaNet software keeps the display operating at the correct voltage to keep it from overheating.\r\n

Run a wide variety of Graphic Formats

\r\nVersaNet is capable of running long videos in an extremely smooth fashion without having the display connected to a PC.\r\n

Hot-swap

\r\nVersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing, and the new module will automatically pick up the previous tile’s configuration.\r\n

Advanced Schedule System

\r\nVersaNet program can be set to Schedule messages, automatically adjust the brightness and turn the display on and off.\r\n

Advanced Weather Display

\r\nVersaNet software can display complete weather forecast information, such as temperature, humidity, wind etc. when connected to the internet.\r\n

High Refresh Rate

\r\nVersaTiles™ 960 Hz standard refresh rate (Optinal up to 3000Hz) provides flicker-free displays of still images and motion video. VersaTiles™ are perfect when using the display as a backdrop while filming.

Product SeriesPixel Pitch (mm)Indoor / OutdoorCabinet Size (mm)Cabinet Size (Inches)
OSL 66mIndoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 88mmIndoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 1010.26mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 1414.4mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 2020.57mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D

\r\n

VersaNet System 2014

\r\nWe are pleased to announce the new and improved VersaNet™ software and controller systems for 2014. Featuring an Asynchronous system with an Independent media player, a PC/Laptop connection is no longer required. PLUS, the 8GB SD card installed in each controller provides extended hours of high-quality video play.\r\nThe new and improved VersaNet™ software and controller systems also feature:\r\n

Failure Notification:

\r\nIf the controller is connected to the Internet, you can set up email notifications if the system experiences any failure.\r\n

Play Log Management:

\r\nThe VersaNet system automatically keeps a log of the times and dates of segments played successfully and/or if there were any system failures. This is perfect for rental scenarios when Proof of Play information is required for customers.\r\n

Play Control & Play Screen Shot

\r\nYou can control, pause and replay the message while it is still playing. Using Screen Shot, you can see what is playing live on the display from a remote location.\r\n

Storage Management

\r\nOn board storage and an 8 GB SD card which allows you to store content and view available storage space.\r\n

Display Manager

\r\nManage multiple signs at multiple locations by grouping displays remotely.\r\n

Live, remote monitoring the display

\r\nView the status of each VersaTile™ module.\r\n

Dynamic IP Configurations

\r\nSimply connect to your network and the VersaNet™ software will search and find the controller.\r\n

Pixel Level Color Calibration

\r\nAll VersaTiles™ are pre-calibrated at the factory to ensure consistent color and brightness regardless of the production run. The color and brightness can be controlled right down to the pixel on each VersaTile™ module.\r\n

Automatic Voltage and Temperature Control Adjustment

\r\nOnboard technology in VersaNet software keeps the display operating at the correct voltage to keep it from overheating.\r\n

Run a wide variety of Graphic Formats

\r\nVersaNet is capable of running long videos in an extremely smooth fashion without having the display connected to a PC.\r\n

Hot-swap

\r\nVersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing, and the new module will automatically pick up the previous tile’s configuration.\r\n

Advanced Schedule System

\r\nVersaNet program can be set to Schedule messages, automatically adjust the brightness and turn the display on and off.\r\n

Advanced Weather Display

\r\nVersaNet software can display complete weather forecast information, such as temperature, humidity, wind etc. when connected to the internet.\r\n

High Refresh Rate

\r\nVersaTiles™ 960 Hz standard refresh rate (Optinal up to 3000Hz) provides flicker-free displays of still images and motion video. VersaTiles™ are perfect when using the display as a backdrop while filming.

3 Year Free Parts/Factory Labor Warranty

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered. If you experience a hardware failure with a covered product during the plan's term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instruction for the next steps for making the necessary repair
