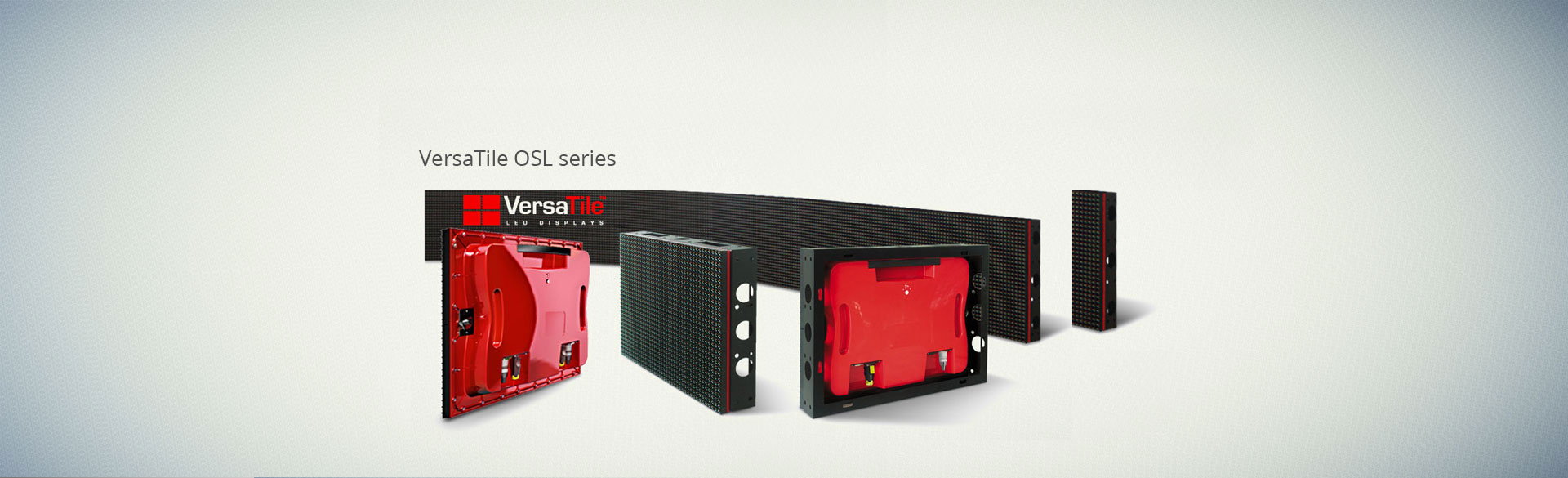

New Generation Outdoor LED

VersaTiles™ modular LED units can be assembled for indoor and outdoor videowalls. They feature ultra-slim TileCrate enclosures, which allow direct access through the front or back of the individual units, and modular diversity for curved and shaped displays in myriad sizes. With the TileCrate enclosure, which measures 22.6 x 17 in., each unit weighs 15-19 lbs. The units are available in 6mm and 8mm sizes for indoor use, and 10, 14, and 20mm sizes for outdoor.   The units can be assembled in “S” curves, half circles and different shapes into artistic displays. They're manufactured using high-impact, flame-retardant ABS plastic, with a built-in firewall retention feature. Please read more below (VersaNet System Features & why VersaTile?).
Product SeriesPixel Pitch (mm)Indoor / OutdoorCabinet Size (mm)Cabinet Size (Inches)
OSL 66mIndoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 88mmIndoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 1010.26mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 1414.4mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D
OSL 2020.57mmOutdoor576 (w) x432 (H)17" H x 22.68 W x 4" D

Ultra-slim

VersaTiles ™ innovative, ultra-slim enclosures allow direct access via the front or back of the display.

Hot Swap with No Downtime

VersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing.

In case of a problem with any of the tiles, you can swap in a spare tile in a few minutes with no downtime.

Modular diversity

VersaTiles™ can be set up in a traditional block format or curved to form a unique display in just about any size. The modular nature of VersaTiles™ enables end-users to customize their video walls in limitless ways. From “S” curves and half circles to shapes and artistic displays, VERSATile™ sets the new standard in customer satisfaction.

Lightweight, self-contained Modules

Each VERSATile™ includes a TileCrate enclosure that measures 22.6” x 17”, and weighs just 15-19 pounds depending on weather they are for indoor or outdoor use. An onboard test button allows RGBW preview testing without connecting to an external PC or data source.

Multiple Pixel Arrays

The compact VersaTiles™ are available in 6mm and 8mm for indoor; 10, 14mm for outdoor.

Easy to Install

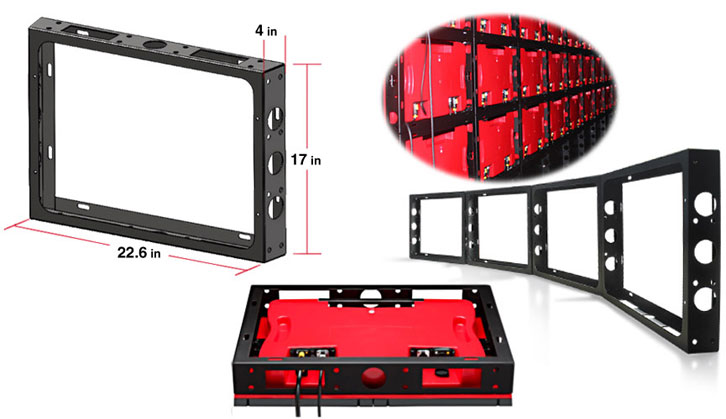

Each TileCrate™ framing enclosure connects modules quickly and simply. Once your TileCrate™ frame is assembled, simply place the VERSATile™ in and lock it into place with the provided hex-wrenches.

Safe and Durable

VersaTiles™ are manufactured using high impact, flame retardant ABS plastic and have a built in firewall retention feature.

VersaTiles™ are perfect for Fixed Install or rental.

Each VERSATile™ is individually boxed for easy storage and shipping. To fulfill orders dealers just pull the appropriate number of boxes out of inventory and ship. The unique packaging format also makes it very easy to transport to a job site for install. No crane or heavy lifting, just bolt the TileCrate™ together and snap the VersaTiles™ in place.

VersaTiles™ – The future of LED today.

VersaNet System 2014

We are pleased to announce the new and improved VersaNet™ software and controller systems for 2014. Featuring an Asynchronous system with an Independent media player, a PC/Laptop connection is no longer required. PLUS, the 8GB SD card installed in each controller provides extended hours of high-quality video play.

The new and improved VersaNet™ software and controller systems also feature:

Failure Notification:

If the controller is connected to the Internet, you can set up email notifications if the system experiences any failure.

Play Log Management:

The VersaNet system automatically keeps a log of the times and dates of segments played successfully and/or if there were any system failures. This is perfect for rental scenarios when Proof of Play information is required for customers.

Play Control & Play Screen Shot

You can control the message while it is playing, such as pause and replay. And using Screen Shot, you can see what is playing live on the display from a remote location.

Storage Management

On board storage and 8 GB SD card which allows you to store content and view available storage space.

Display Manager

Manage multi signs at multiple locations by grouping displays remotely.

Live, remote monitoring the display

View the status of each VERSAtile™ module.

Dynamic IP Configurations

Simply connect to your network and the VersaNet™ software will search and find the controller.

Pixel Level Color Calibration

All VersaTiles™ are pre-calibrated at the factory to ensure consistent color and brightness regardless of the production run. The color and brightness can be controlled right down to the pixel on each VERSAtile™ module.

Automatic Voltage and Temperature Control Adjustment

Onboard technology in VersaNet software keeps the display operating at the correct voltage to keep it from overheating.

Run a wide variety of Graphic Formats

VersaNet is capable of running long videos in an extremely smooth fashion without having the display connected to a PC.

Hot-swap

VersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing, and the new module will automatically pick up the previous tile’s configuration.

Advanced Schedule System

VersaNet program can be set to Schedule messages, automatically adjust the brightness and turn the display on and off.

Advanced Weather Display

VersaNet software can display complete weather forecast information, such as temperature, humidity, wind etc. when connected to the internet.

High Refresh Rate

VersaTiles™ 960 Hz standard refresh rate (Optinal up to 3000Hz) provides flicker-free displays of still images and motion video. VersaTiles™ are perfect when using the display as a backdrop while filming.

Multi-display Asynchronism Function New

VersaNet System 2014

We are pleased to announce the new and improved VersaNet™ software and controller systems for 2014. Featuring an Asynchronous system with an Independent media player, a PC/Laptop connection is no longer required. PLUS, the 8GB SD card installed in each controller provides extended hours of high-quality video play.

The new and improved VersaNet™ software and controller systems also feature:

Failure Notification:

If the controller is connected to the Internet, you can set up email notifications if the system experiences any failure.

Play Log Management:

The VersaNet system automatically keeps a log of the times and dates of segments played successfully and/or if there were any system failures. This is perfect for rental scenarios when Proof of Play information is required for customers.

Play Control & Play Screen Shot

You can control the message while it is playing, such as pause and replay. And using Screen Shot, you can see what is playing live on the display from a remote location.

Storage Management

On board storage and 8 GB SD car which allows you to store content and view available storage space.

Display Manager

Manage multi signs at multiple locations by grouping displays at various locations.

Live, remote monitoring the display

View the status of each VERSAtile™ module.

Dynamic IP Configurations

Simply connect to your network and the VersaNet™ software will search and find the controller.

Pixel Level Color Calibration

All VersaTiles™ are pre-calibrated at the factory to ensure consistent color and brightness regardless of the production run. The color and brightness can be controlled right down to the pixel on each VERSAtile™ module.

Automatic Voltage and Temperature Control Adjustment

Onboard technology in VersaNet software keeps the display operating at the correct voltage to keep it from overheating.

Run a wide variety of Graphic Formats

VersaNet is capable of running long videos in an extremely smooth fashion without having the display connected to a PC.

Hot-swap

VersaTiles™ innovative design allows the convenience of changing out modules quickly and easily even while the display is playing, and the new module will automatically pick up the previous tile’s configuration.

Advanced Schedule System

VersaNet program can be set to Schedule messages, automatically adjust the brightness and turn the display on and off.

Advanced Weather Display

VersaNet software can display complete weather forecast information, such as temperature, humidity, wind etc. when connected to the internet.

playing multi-task automatically ; saturation, Brightness Control, Schedule Turning On or Off the displays and much more..

3 Year Free Parts/Factory Labor Warranty

For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered. If you experience a hardware failure with a covered product during the plan's term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instruction for the next steps for making the necessary repairs.
